AG7 with UltraDAS + SDSU Gen.2
Device Identification
|
| Chip name | AG7 |
| Year of manufacture | 2004 |
| Serial number | 02101-02029 |
| First light on La Palma | 6th April 2005 |
| Description | E2V CCD 57-10-1-A64 science grade non-peltier cooled |
Operational Characteristics
| Speed | Fast |
Slow |
| Bias(ADU) | 461 |
3430 |
| Gain(e/ADU) | 1.1 |
0.53 |
| Noise(e) | 16 |
6 |
| Noise(ADU) | 14.5 | 11.3 |
| Linear to(ADU) {also see graphs below} |
65K |
65K |
| Readout time(s) * | 1.0 |
1.6 |
Physical Characteristics
| X Pixel size | 13 microns |
| Y Pixel size | 13 microns |
| X size in pixels of digitised area | 560 |
| Y size in pixels of digitised area | 536 |
| X size of useful imaging area | 512 |
| Y size of useful imaging area | 512 |
| X start of useful imaging area | 24 |
| Ystart of useful imaging area | 15 |
Operational Parameters
| Operating temperature | Ambient |
| Preferred amplifier | Left |
Measured Characteristics

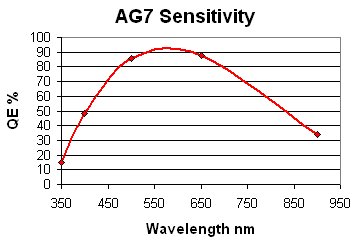

Quantum Efficiency
| Dark current | 100e/s at 17 degrees C |
| Cosmetics | none |
