ncu.dl

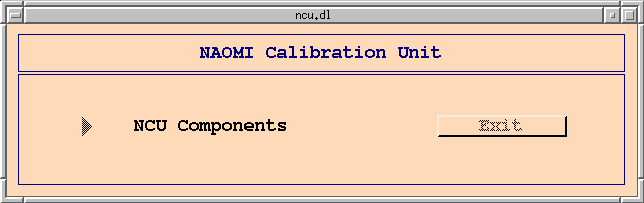

This screen is the top-level menu screen for the calibration unit components of the NAOMI control software. It contains only a menu to underlying screens and an exit button. Left clicking the exit button removes the screen from your display.

Menu items

Right click (and hold) the "NCU Components" menu to bring up the following options:

Beamsplitter opens the screen for the beamsplitter assembly, which controls the in-beam/out-of-beam positioning of the beamsplitter.

Calibration Source opens the screen for the NCU cal source assembly, which controls the status and intensity of the NCU lamp/aperture combination.

Motorised Mask opens the screen which offers control over the in-beam/out-of-beam positioning of the NCU mask.

Tiptilt mirror opens the screen which offers control over the NAOMI tiptilt mirror. This is not currently implemented.

Up to Mechanism control returns the user to the top-level NAOMI menu screen.
