mechs.dl

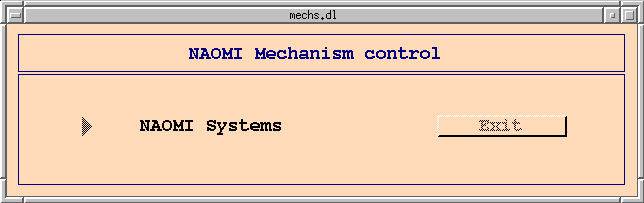

This top-level engineering control screen contains only a two-item menu and an exit button. As detailed in the description of the overall structure of the system, the software is organised into two main components - one for the wavefront sensor and DM mechanisms, another for control over the calibration unit. Accordingly, the menu contains two options. Right click (and hold) the "NAOMI Systems" menu to bring up the following options:

Menu items

The exit button removes the screen from your display. However, distinct from all the underlying screens, left clicking the exit button on this screen will kill the dm process that is driving the screens, removing any open NAOMI (engineering) screens from the display. menu items wfs.dl ncu.dl
