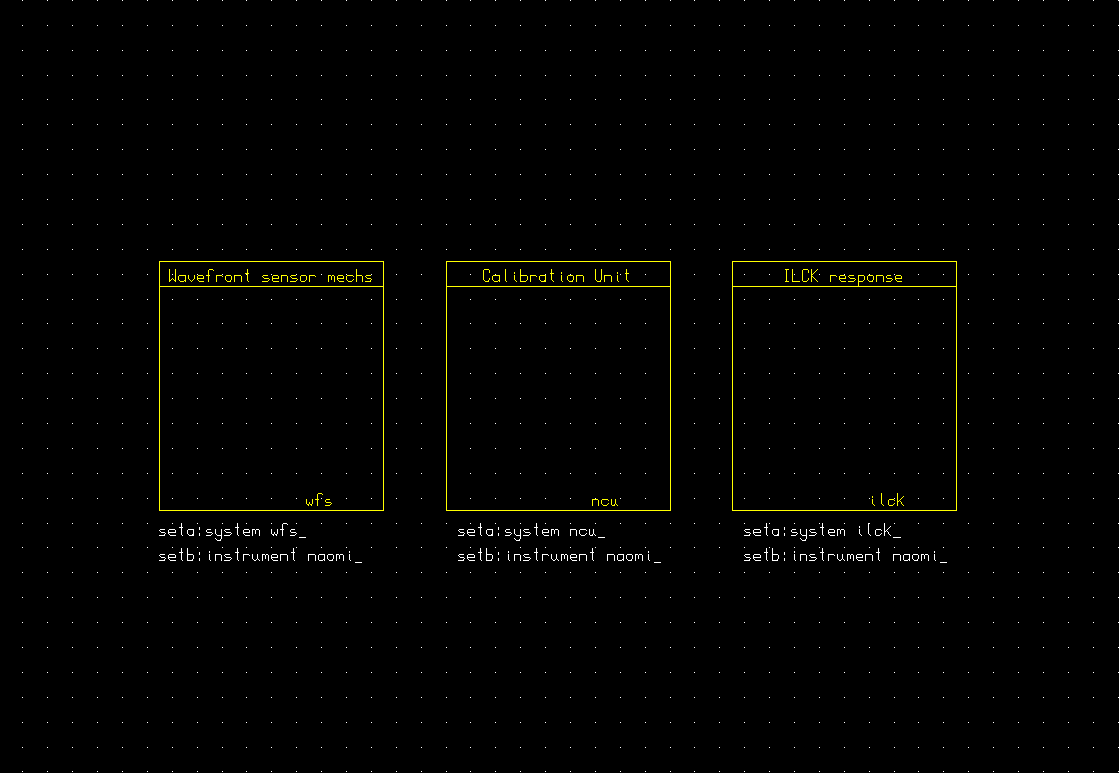

This top level schematic contains three symbols which break up the NAOMI EPICS software into the following components:
wfs.sch, or Wavefront sensor mechs, contains schematics which are used to
control the mechanisms on the NAOMI wavefront sensor itself. Further details can be found by following the link
(or click on the diagram), but essentially these sub-schematics control all of the mechanisms between the pick-off
mirror and the CCD camera, along with the two motors that are used to position the Deformable Mirror (DM).
ncu.sch schematic, or Calibration Unit, contains schematics that control
the mechanisms on the NAOMI calibration unit, which sits in the optical path forward of the wavefront sensor pick-off.
ilck.sch schematic, or ILCK reponse, contains a record that is the central
"entry point" for all of the software Emergency Stop buttons that appear on the NAOMI Engineering screens.
The reader is encouraged to examine the NAOMI schematics using capfast to determine channel names/field value used
for the various components of the software.
