TCS ALPHA REPLACEMENT for the JKT
In the WHT Computer Room
-
Shut down LPAS3 using SHUT account from a LAT or telnet session; the
SHUT account cannot be used from the Alpha's console. Take all default options.
-
When LPAS3 is shut down (blue screen with >>> prompt),
power it off and disconnect all cables.
-
Check that the CAMAC driver PCI card is installed. This card should be
directly below the monitor connection and has approx 140 pins. It is
intended that a card will always be installed in LPAS3. If the card is
not present install one, spare cards are currently kept in a drawer of
the desk in the far right-hand corner of the WHT Computer room.
-
Transport LPAS3's system box to the JKT. Be gentle. Too much
vibration can cause boards/chips to come unseated. Place on top of
LPAS1.
In the JKT Computer Room (on the Ground Floor ).

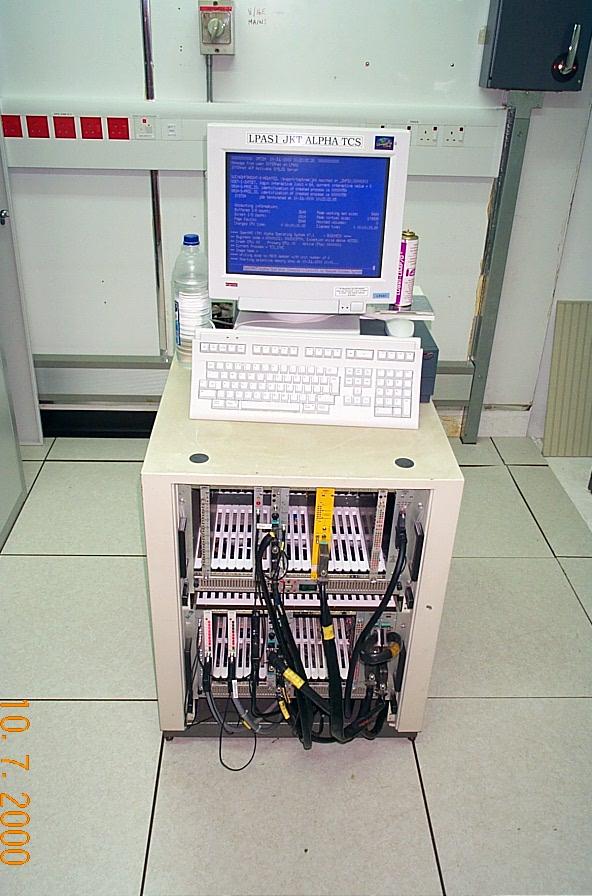

- A picture of
lpas1 .
- Shut down LPAS1 using the SHUT account as above, if possible. Power off
LPAS1.
- On the CAMAC system crate (directly below the Alpha), on the yellow
Branch Coupler (BR CPR 4-1) switch from ON LINE to OFF. Pull the switch
out 2mm to move it.
- Power off the CAMAC system crate.
- Disconnect the cables from LPAS1 and reconnect to LPAS3.
- Power on CAMAC system crate and wait for fans to run up.
- On the Branch Coupler (BR CPR 4-1), press the branch initialise switch,
then switch from OFF to ON LINE.
- C and Z the HYTEC 1386 CAMAC Interface/Controller.
- Power on LPAS3, it will try to boot automatically from an external disk
which will not be available. If the >>> prompt does not appear
after any error messages, then press CTRL-P and wait for the >>> prompt to
appear. (You may have to press CTRL-P more than once.) Then type
boot dka100 and check that it boots VMS 7.1 .
- Wait for LPAS3 to boot (a login message will appear on the console
when it has booted).
In the JKT Control Room
-
Start the TCS as normal, remembering to log in to LPAS3.
-
Check that UT and ST are updating in the TCS DISPLAY window, and check that the
encoder values look sensible with the PAGE ENC command.
-
On the ICS machine, shutdown the Unix observing system with
shutdownobssys, this removes the DRAMA connection to LPAS1.
-
Restart the observing system with startobssys, ignore error messages
about failure to connect to TCS on LPAS1.
-
Set up the connection to the TCS with the command online
TCS@LPAS3 This makes the connection for this session only and must
be repeated each time the observing system is started until the
software group change the configuration (see below).
-
Check that the Unix observing system communicates with the TCS, using
the command tcs page to change the TCS info display page.
-
Perform general checks on the TCS.
In case of problems see TCS help
Notes for software group
-
On the JKT ICS sparc login as jktsm. Edit the file
/jkt/etc/nodes.JKT and change the tcs_node to LPAS3. This will
make the Unix observing system talk to the TCS on LPAS3 permanently.
-
If there are problems with communication or header collection, login to
LPAS3 as TCSMGR.
-
For communication problems, check that the DRAMA port number is 50001
with the command type [JKT_LOGIN]IMP_STARTUP.LPAS3.
-
If there are problems with header collection, check that the Unix ICS
/jkt partition is mounted on LPAS3. Use the command SHOW DEV D
and check that a disk with device name _DNFSn and volume label JKT is
mounted. This partition is mounted at boot by SYS$SYSROOT:[SYSMGR]TCS_STARTUP.COM, also when the TCS starts up it
will check and remount the partition if it is not mounted.
-
To make previous CALIBRATE results available, restore reduced data
files from LPAS1 directory [JKT.DATA.CALIBRATE]*.RED . Currently only
the most recent are used. CFG may be able to restore from backup or
mount disk from defunct lpas1.
