INGRID Cryostat Wiring Schedule

Return to INGRID Hardware Page

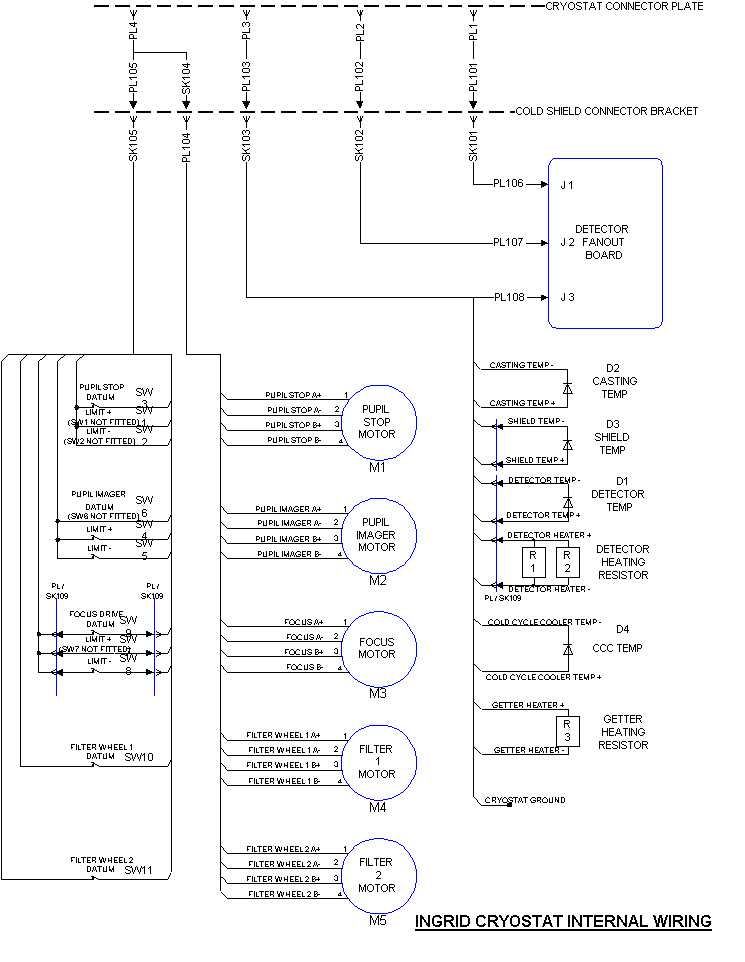

Cryostat wiring schematic
Cryostat to shield detector signal and bias cable
Shield to Fanout detector signal and bias cable
Cryostat to shield detector clock cable
Shield to Fanout detector clock cable
Cryostat to shield telemetry cable
Shield to sensor telemetry cable
Cryostat to shield mechanism drive and sensor cable
Shield to mechanism motor drive cable
Shield to mechanism sensor cable
Focus mount wiring
Fanout module
Cryostat parts and materials

INGRID CRYOSTAT TO SHIELD DETECTOR SIGNAL WIRING
PL1			PL101
Amphenol 20-41 Male	SIGNAL NAME	CABLE TYPE		Cinch Micro D25M

S	OUT1+	50 ohm Min Coax		1
R	OUT1-	50 ohm Min Coax		2
N/C	OUT1 SHIELD	Min Coax Shields		3

P	OUT2+	50 ohm Min Coax		4
g	OUT2-	50 ohm Min Coax		5
N/C	OUT2 SHIELD	Min Coax Shields		6

N	OUT3+	50 ohm Min Coax		7
f	OUT3-	50 ohm Min Coax		8
N/C	OUT3 SHIELD	Min Coax Shields		9

M	OUT4+	50 ohm Min Coax		10
e	OUT4-	50 ohm Min Coax		11
N/C	OUT 4 SHIELD	Min Coax Shields		12

d	AGND	22 AWG PTFE		13
N/C	BIAS SHIELD			14
K	VDD POWER	MANGANIN		15
r	HIGH1	MANGANIN		16
h	HIGH2	MANGANIN		17
T	HIGH3	MANGANIN		18
L	HIGH4	MANGANIN		19
q	VRESET	MANGANIN		22
U	BIASGATE	MANGANIN		24
j	BIASPOWER	26 AWG PTFE		25

INGRID SHIELD TO FANOUT DETECTOR SIGNAL WIRING
SK101			PL106
Cinch Micro D25F	SIGNAL NAME	CABLE TYPE		Cinch Micro D31M

1	OUT1+	TYPE 24 TWISTED		13
2	OUT1-	PAIR SHIELDED		29
3	OUT1 SHIELD	PTFE		12

4	OUT2+	TYPE 24 TWISTED		11
5	OUT2-	PAIR SHIELDED		27
6	OUT2 SHIELD	PTFE		10

7	OUT3+	TYPE 24 TWISTED		9
8	OUT3-	PAIR SHIELDED		25
9	OUT3 SHIELD	PTFE		8

10	OUT4+	TYPE 24 TWISTED		7
11	OUT4-	PAIR SHIELDED		23
12	OUT4 SHIELD	PTFE		6

13	AGND	22 AWG PTFE		30
14	BIAS SHIELD			31
15	VDD POWER			N/C
16	HIGH1	26 AWG PTFE		16
17	HIGH2	26 AWG PTFE		15
18	HIGH3	26 AWG PTFE		18
19	HIGH4	26 AWG PTFE		17
22	VRESET	26 AWG PTFE		2
24	BIASGATE	26 AWG PTFE		4
25	BIASPOWER	22 AWG PTFE		3

INGRID CRYOSTAT TO SHIELD DETECTOR CLOCK WIRING
PL2			PL102
Amphenol 20-26 Male	SIGNAL NAME	CABLE TYPE	Cinch Micro D37F
A	VDD	26 AWG PTFE	21
b	DGND	26 AWG PTFE	19
b	DGND	26 AWG PTFE	20
N/C	VDD SHIELD		22

R	PIXEL1	SPECIAL	18
M	LSYNC1	FLAT RIBBON	13
E	FSYNC1	HARNESS FROM	36
G	READ1	IRLABS.	31
K	RESET1		26
C	LINE1	USED TO ALLOW	8
P	PIXEL2	EFFICIENT	17
L	LSYNC2	HEAT SINKING	12
D	FSYNC2	AT THERMAL	35
F	READ2	SINK POINT	30
J	RESET2	ON CRYOSTAT	25
B	LINE2	SHIELD.	7
S	PIXEL3		16
N	LSYNC3		11
V	FSYNC3		34
H	READ3		29
X	RESET3		24
T	LINE3		6
a	PIXEL4		15
Z	LSYNC4		10
c	FSYNC4		33
W	READ4		28
Y	RESET4		23
U	LINE4		5
N/C	CLOCK SHIELD 4		32

INGRID SHIELD TO FANOUT DETECTOR CLOCK WIRING
SK102			PL107
Cinch Micro D37M	SIGNAL NAME	CABLE TYPE	Cinch Micro D37M
21	VDD	22 AWG PTFE	21
19	DGND	22 AWG PTFE	19
20	DGND	22 AWG PTFE	20
N/C	VDD SHIELD		22

18	PIXEL1	28 AWG PTFE	18
13	LSYNC1	28 AWG PTFE	13
36	FSYNC1	28 AWG PTFE	36
31	READ1	28 AWG PTFE	31
26	RESET1	28 AWG PTFE	26
8	LINE1	28 AWG PTFE	8
N/C	CLOCK SHIELD 1		14

17	PIXEL2	28 AWG PTFE	17
12	LSYNC2	28 AWG PTFE	12
35	FSYNC2	28 AWG PTFE	35
30	READ2	28 AWG PTFE	30
25	RESET2	28 AWG PTFE	25
7	LINE2	28 AWG PTFE	7
N/C	CLOCK SHIELD 2		9

16	PIXEL3	28 AWG PTFE	16
11	LSYNC3	28 AWG PTFE	11
34	FSYNC3	28 AWG PTFE	34
29	READ3	28 AWG PTFE	29
24	RESET3	28 AWG PTFE	24
6	LINE3	28 AWG PTFE	6
N/C	CLOCK SHIELD 3		4

15	PIXEL4	28 AWG PTFE	15
10	LSYNC4	28 AWG PTFE	10
33	FSYNC4	28 AWG PTFE	33
28	READ4	28 AWG PTFE	28
23	RESET4	28 AWG PTFE	23
5	LINE4	28 AWG PTFE	5
32	CLOCK SHIELD 4		32

INGRID CRYOSTAT TO SHIELD TEMPERATURE WIRING
PL3			PL103
Amphenol 20-26 Male	SIGNAL NAME	CABLE TYPE	Cinch Micro D37M

A	DETECTOR TEMP +	MANGANIN	1
B	DETECTOR TEMP -	MANGANIN	19
C	CAMERA TEMP +	MANGANIN	3
D	CAMERA TEMP -	MANGANIN	21
E	COLD SHIELD TEMP +	MANGANIN	5
F	COLD SHIELD TEMP -	MANGANIN	23
G	FANOUT TEMP +	MANGANIN	7
H	FANOUT TEMP -	MANGANIN	25
J
K
L
M
N	DETECTOR HEATER +	24 AWG PTFE	30
P	DETECTOR HEATER -	24 AWG PTFE	31
R	COLD CYCLE COOLER TEMP +	MANGANIN x 2	33
S	COLD CYCLE COOLER TEMP -	MANGANIN x 2	34
T	GETTER HEATER +	24 AWG PTFE	36
U	GETTER HEATER -	24 AWG PTFE	37

V	PREFLASH LED +	MANGANIN	9
W	PREFLASH LED -	MANGANIN	10
X	LIGHT BULB +	MANGANIN	28
Y	LIGHT BULB -	MANGANIN	29
Z
a	SPARE	MANGANIN	12
b	TEMPERATURE SHIELD		N/C
c	CRYOSTAT GROUND	26 AWG PTFE	13

INGRID SHIELD TO SENSOR TEMPERATURE WIRING
SK103
Cinch Micro D37F	SIGNAL NAME	CABLE TYPE
3	CAMERA TEMP +	26 AWG PTFE	D2 ANODE
21	CAMERA TEMP -	26 AWG PTFE	D2 CATHODE
5	COLD SHIELD TEMP +	26 AWG PTFE	D3 ANODE
23	COLD SHIELD TEMP -	26 AWG PTFE	D3 CATHODE
33	COLD CYCLE COOLER TEMP +	22 AWG PTFE	R2
34	COLD CYCLE COOLER TEMP -	22 AWG PTFE	R2
36	GETTER HEATER +	22 AWG PTFE	R3
37	GETTER HEATER -	22 AWG PTFE	R3
28	LIGHT BULB +		N/C
29	LIGHT BULB -		N/C
12	SPARE		N/C
13	CRYOSTAT GROUND	18 AWG PTFE	To focus mount earth lug.
			PL108
			Cinch Micro DB9M
9	PREFLASH LED +	26 AWG PTFE	6
10	PREFLASH LED -	26 AWG PTFE	7
7	FANOUT TEMP +	26 AWG PTFE	8
25	FANOUT TEMP -	26 AWG PTFE	9
			SK109
			Cinch Micro DB9F
1	DETECTOR TEMP +	26 AWG PTFE	1
19	DETECTOR TEMP -	26 AWG PTFE	2
30	DETECTOR HEATER +	22 AWG PTFE	4
31	DETECTOR HEATER -	22 AWG PTFE	5

INGRID CRYOSTAT TO SHIELD MECHANISM WIRING
PL4			SK104
Amphenol 20-41 Male	SIGNAL NAME	CABLE TYPE		ITT DB25F

A	PUPIL STOP A+	24 AWG PTFE		1
B	PUPIL STOP A-	24 AWG PTFE		2
C	PUPIL STOP B+	24 AWG PTFE		3
D	PUPIL STOP B-	24 AWG PTFE		4
N/C	PUPIL STOP SHIELD			14

E	PUPIL IMAGER A+	24 AWG PTFE		5
F	PUPIL IMAGER A-	24 AWG PTFE		6
G	PUPIL IMAGER B+	24 AWG PTFE		7
H	PUPIL IMAGER B-	24 AWG PTFE		8
N/C	PUPIL IMAGER SHIELD			9

J	FOCUS DRIVE A+	24 AWG PTFE		10
K	FOCUS DRIVE A-	24 AWG PTFE		11
L	FOCUS DRIVE B+	24 AWG PTFE		12
M	FOCUS DRIVE B-	24 AWG PTFE		13
N/C	FOCUS SHIELD			25

N	FILTER WHEEL 1 A+	24 AWG PTFE		15
P	FILTER WHEEL 1 A-	24 AWG PTFE		16
R	FILTER WHEEL 1 B+	24 AWG PTFE		17
S	FILTER WHEEL 1 B-	24 AWG PTFE		18
N/C	FILTER WHEEL 1 SHIELD			19

T	FILTER WHEEL 2 A+	24 AWG PTFE		21
U	FILTER WHEEL 2 A-	24 AWG PTFE		22
V	FILTER WHEEL 2 B+	24 AWG PTFE		23
W	FILTER WHEEL 2 B-	24 AWG PTFE		24
N/C	FILTER WHEEL 2 SHIELD			20
				PL105
				Cinch Micro D25M
X	PUPIL STOP LIMIT+	MANGANIN		1
Y	PUPIL STOP LIMIT -	MANGANIN		2
Z	PUPIL STOP DATUM	MANGANIN		3
a	PUPIL STOP RETURN	MANGANIN		4
N/C	PUPIL STOP SHIELD			14

b	PUPIL IMAGER LIMIT+	MANGANIN		5
c	PUPIL IMAGER LIMIT -	MANGANIN		6
d	PUPIL IMAGER DATUM	MANGANIN		7
e	PUPIL IMAGER RETURN	MANGANIN		8
N/C	PUPIL IMAGER SHIELD			9

f	FOCUS DRIVE LIMIT+	MANGANIN		10
g	FOCUS DRIVE LIMIT -	MANGANIN		11
h	FOCUS DRIVE DATUM	MANGANIN		12
i	FOCUS DRIVE RETURN	MANGANIN		13
N/C	FOCUS SHIELD			25

j	FILTER WHEEL 1 LIMIT+	MANGANIN		15
k	FILTER WHEEL 1 LIMIT -	MANGANIN		16
m	FILTER WHEEL 1 DATUM	MANGANIN		17
n	FILTER WHEEL 1 RETURN	MANGANIN		18
N/C	FILTER WHEEL 1 SHIELD			19

p	FILTER WHEEL 2 LIMIT+	MANGANIN		21
q	FILTER WHEEL 2 LIMIT -	MANGANIN		22
r	FILTER WHEEL 2 DATUM	MANGANIN		23
s	FILTER WHEEL 2 RETURN	MANGANIN		24
N/C	FILTER WHEEL 2 SHIELD			20
t

INGRID SHIELD TO MOTOR WIRING
PL104
ITT DB25M	SIGNAL NAME	CABLE TYPE

1	PUPIL STOP A+	18 AWG PTFE	M1 – 1
2	PUPIL STOP A-	18 AWG PTFE	M1 – 2
3	PUPIL STOP B+	18 AWG PTFE	M1 – 3
4	PUPIL STOP B-	18 AWG PTFE	M1 – 4
14	PUPIL STOP SHIELD		M1 – GND

5	PUPIL IMAGER A+	18 AWG PTFE	M2 – 1
6	PUPIL IMAGER A-	18 AWG PTFE	M2 – 2
7	PUPIL IMAGER B+	18 AWG PTFE	M2 – 3
8	PUPIL IMAGER B-	18 AWG PTFE	M2 – 4
9	PUPIL IMAGER SHIELD		M2 – GND

10	FOCUS DRIVE A+	18 AWG PTFE	M3 – 1
11	FOCUS DRIVE A-	18 AWG PTFE	M3 – 2
12	FOCUS DRIVE B+	18 AWG PTFE	M3 – 3
13	FOCUS DRIVE B-	18 AWG PTFE	M3 – 4
25	FOCUS SHIELD		M3 – GND

15	FILTER WHEEL 1 A+	18 AWG PTFE	M4 – 1
16	FILTER WHEEL 1 A-	18 AWG PTFE	M4 – 2
17	FILTER WHEEL 1 B+	18 AWG PTFE	M4 – 3
18	FILTER WHEEL 1 B-	18 AWG PTFE	M4 – 4
19	FILTER WHEEL 1 SHIELD		M4 – GND

21	FILTER WHEEL 2 A+	18 AWG PTFE	M5 – 1
22	FILTER WHEEL 2 A-	18 AWG PTFE	M5 – 2
23	FILTER WHEEL 2 B+	18 AWG PTFE	M5 – 3
24	FILTER WHEEL 2 B-	18 AWG PTFE	M5 – 4
20	FILTER WHEEL 2 SHIELD		M5 – GND

INGRID SHIELD TO MECHANISM SENSOR WIRING
SK105
Cinch Micro D25F	SIGNAL NAME	CABLE TYPE

1	PUPIL STOP LIMIT+	26 AWG PTFE	SW1 N.C
2	PUPIL STOP LIMIT -	26 AWG PTFE	SW2 N.C
3	PUPIL STOP DATUM	26 AWG PTFE	SW3 N.C
4	PUPIL STOP RETURN	26 AWG PTFE	SW1, SW2, SW3, COMM
14	PUPIL STOP SHIELD		M1 GND

5	PUPIL IMAGER LIMIT+	26 AWG PTFE	SW4 N.C
6	PUPIL IMAGER LIMIT -	26 AWG PTFE	SW5 N.C
7	PUPIL IMAGER DATUM	26 AWG PTFE	SW6 N.C
8	PUPIL IMAGER RETURN	26 AWG PTFE	SW4, SW5, SW6, COMM
9	PUPIL IMAGER SHIELD		M2 GND

15	FILTER WHEEL 1 LIMIT+		N/C
16	FILTER WHEEL 1 LIMIT -		N/C
17	FILTER WHEEL 1 DATUM	26 AWG PTFE	SW10 N.C
18	FILTER WHEEL 1 RETURN	26 AWG PTFE	SW10 COMM
19	FILTER WHEEL 1 SHIELD		M4 GND

21	FILTER WHEEL 2 LIMIT+		N/C
22	FILTER WHEEL 2 LIMIT -		N/C
23	FILTER WHEEL 2 DATUM	26 AWG PTFE	SW11 N.C
24	FILTER WHEEL 2 RETURN	26 AWG PTFE	SW11 COMM
20	FILTER WHEEL 2 SHIELD		M5 GND

25	FOCUS SHIELD		M3 GND
			SK109
			Cinch Micro DB9F
10	FOCUS DRIVE LIMIT+	26 AWG PTFE	7
11	FOCUS DRIVE LIMIT -	26 AWG PTFE	9
12	FOCUS DRIVE DATUM	26 AWG PTFE	3
13	FOCUS DRIVE RETURN	26 AWG PTFE	6,8

FOCUS DRIVE MOUNTCABLING
PL109
Cinch Micro DB9M	SIGNAL NAME	CABLE TYPE
1	DETECTOR TEMP +	26 AWG PTFE	D1 ANODE
2	DETECTOR TEMP -	26 AWG PTFE	D1 CATHODE
3	FOCUS DRIVE DATUM	26 AWG PTFE	SW7 COM
4	DETECTOR HEATER +	26 AWG PTFE	R1 +
5	DETECTOR HEATER -	26 AWG PTFE	R1 -
6	FOCUS DRIVE RETURN	26 AWG PTFE	SW7 COM
7	FOCUS DRIVE LIMIT+	26 AWG PTFE	SW7 N.C
8	FOCUS DRIVE RETURN	26 AWG PTFE	SW8 COM
9	FOCUS DRIVE LIMIT -	26 AWG PTFE	SW8 N.C

Cryostat parts and materials list
	!! Under Construction !!
