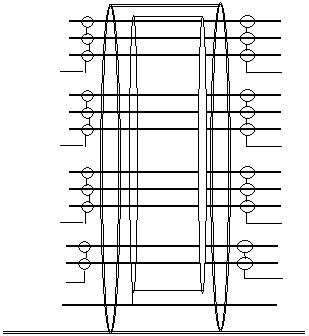

| this is cable FOR CLOCK |
|
|
|
|
|
|
|
|
|
|
| signal |
D37F to D37M on Clk Bd inside SDSU controller |
19 Pin AMP chassis socket/cable plug |
|
|
19 Pin AMP chassis PLUG/cable SOCKET |
IDC26 pin to J9 on Clk inside
header |
|
|
| |
|
|
|
|
|
|
|
|
| I1 |
6 |
M |
|
|
M |
21 |
|
|
| I2 |
7 |
L |
|
|
L |
19 |
|
|
| I3 |
8 |
K |
|
|
K |
17 |
|
|
| GND |
27, leave wire unconnected |
N |
|
|
N |
22,20,18 |
|
|
| R2 |
4 |
J |
|
|
J |
15 |
|
|
| R3 |
5 |
H |
|
|
H |
13 |
|
|
| R1 |
3 |
G |
|
|
G |
11 |
|
|
| GND |
23, leave wire
unconnected |
T |
|
|
T |
16,14,12 |
|
|
| S3 |
11 |
F |
|
|
F |
9 |
|
|
| S2 |
10 |
E |
|
|
E |
7 |
|
|
| S1 |
9 |
D |
|
|
D |
5 |
|
|
| GND |
30,
leave wire unconnected |
S |
|
|
S |
10,8 |
|
|
| RR |
1 |
A |
|
|
A |
23 |
|
|
| RL |
2 |
C |
|
|
C |
3 |
|
|
| GND |
31,
leave wire unconnected |
P |
|
|
P |
24 |
|
|
| GND |
32,
leave wire unconnected |
B |
|
wire 22G |
B |
2,4,6 |
|
|
| |
AMP metal shell |
|
|
|
AMP metal shell |
|
|
|
| |
|
|
|
|
|
|
|
|
| NOTE |
|
|
| single wire with screen,RS229-1494 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
