Echellogram parameters

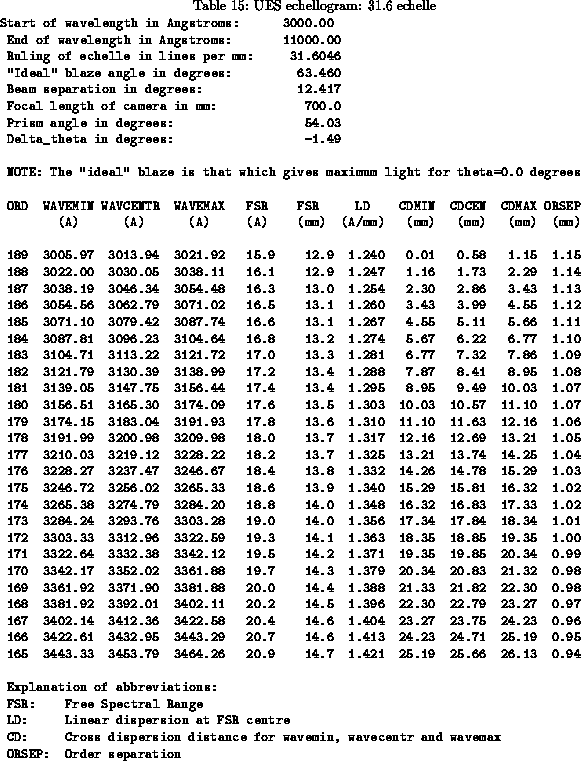

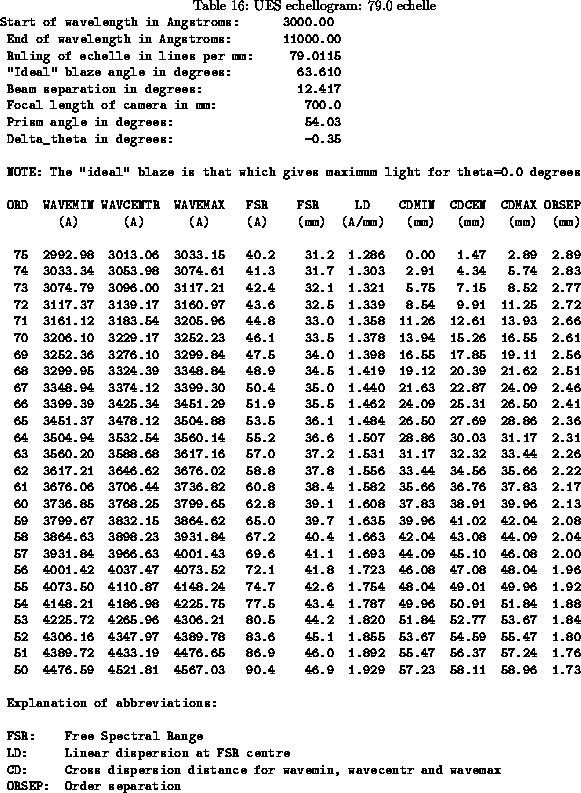

The set of interference orders observable with UES is summarised in Tab. 15 for the 31.6 lines/mm echelle and in Tab. 16 for the 79.0 lines/mm echelle. For each order number, the tables give the follwing parameters:

The echellograms for the 31.6 g/mm and 79.0 g/mm echelles are shown schematically in Fig. 6. Further, in Chap. x a description of the planning software, ECHWIND is given. Briefly this software models UES and provides the user with information as to the detector coverage of the echellogram, with any detector at any specfied central wavelength.

ORD  WAVEMIN WAVCENTR  WAVEMAX   FSR    FSR     LD    CDMIN  CDCEN  CDMAX ORSEP
        (A)      (A)      (A)     (A)    (mm)  (A/mm)   (mm)   (mm)   (mm)  (mm)

164 3464.29 3474.88 3485.48 21.2 14.8 1.430 26.13 26.60 27.07 0.94 163 3485.51 3496.23 3506.96 21.4 14.9 1.439 27.07 27.54 28.00 0.93 162 3506.99 3517.84 3528.70 21.7 15.0 1.448 28.00 28.46 28.92 0.92 161 3528.73 3539.72 3550.72 22.0 15.1 1.457 28.92 29.38 29.84 0.91 160 3550.74 3561.87 3573.00 22.3 15.2 1.466 29.84 30.29 30.74 0.91 159 3573.03 3584.30 3595.57 22.5 15.3 1.475 30.75 31.20 31.64 0.90 158 3595.59 3607.01 3618.42 22.8 15.4 1.484 31.65 32.09 32.54 0.89 157 3618.44 3630.00 3641.56 23.1 15.5 1.494 32.54 32.98 33.42 0.88 156 3641.58 3653.29 3665.00 23.4 15.6 1.503 33.42 33.87 34.30 0.88 155 3665.02 3676.88 3688.74 23.7 15.7 1.513 34.30 34.74 35.17 0.87 154 3688.76 3700.77 3712.79 24.0 15.8 1.523 35.17 35.61 36.04 0.86 153 3712.80 3724.98 3737.15 24.3 15.9 1.533 36.04 36.47 36.89 0.86 152 3737.16 3749.50 3761.83 24.7 16.0 1.543 36.89 37.32 37.74 0.85 151 3761.84 3774.34 3786.84 25.0 16.1 1.553 37.74 38.17 38.59 0.84 150 3786.85 3799.51 3812.18 25.3 16.2 1.564 38.59 39.01 39.42 0.84 149 3812.19 3825.02 3837.86 25.7 16.3 1.574 39.42 39.84 40.25 0.83 148 3837.87 3850.88 3863.89 26.0 16.4 1.585 40.25 40.66 41.07 0.82 147 3863.89 3877.08 3890.27 26.4 16.5 1.596 41.07 41.48 41.89 0.82 146 3890.27 3903.64 3917.01 26.7 16.6 1.607 41.89 42.29 42.70 0.81 145 3917.01 3930.57 3944.12 27.1 16.8 1.618 42.70 43.10 43.50 0.80 144 3944.12 3957.87 3971.61 27.5 16.9 1.629 43.50 43.90 44.29 0.80 143 3971.61 3985.55 3999.48 27.9 17.0 1.640 44.29 44.69 45.08 0.79 142 3999.48 4013.61 4027.75 28.3 17.1 1.652 45.08 45.47 45.86 0.78 141 4027.74 4042.08 4056.41 28.7 17.2 1.663 45.86 46.25 46.64 0.78 140 4056.41 4070.95 4085.49 29.1 17.4 1.675 46.64 47.03 47.41 0.77 139 4085.48 4100.23 4114.98 29.5 17.5 1.687 47.41 47.79 48.17 0.76 138 4114.98 4129.94 4144.90 29.9 17.6 1.700 48.17 48.55 48.93 0.76 137 4144.90 4160.08 4175.26 30.4 17.7 1.712 48.93 49.30 49.68 0.75 136 4175.25 4190.66 4206.07 30.8 17.9 1.725 49.68 50.05 50.42 0.74 135 4206.06 4221.70 4237.33 31.3 18.0 1.737 50.42 50.79 51.16 0.74 134 4237.32 4253.19 4269.06 31.7 18.1 1.750 51.16 51.53 51.89 0.73 133 4269.05 4285.16 4301.27 32.2 18.3 1.764 51.89 52.26 52.62 0.73 132 4301.26 4317.61 4333.97 32.7 18.4 1.777 52.62 52.98 53.34 0.72 131 4333.95 4350.56 4367.16 33.2 18.5 1.790 53.34 53.69 54.05 0.71 130 4367.15 4384.01 4400.87 33.7 18.7 1.804 54.05 54.40 54.76 0.71 129 4400.86 4417.98 4435.10 34.2 18.8 1.818 54.76 55.11 55.46 0.70 128 4435.09 4452.48 4469.87 34.8 19.0 1.832 55.46 55.81 56.15 0.70 127 4469.85 4487.52 4505.19 35.3 19.1 1.847 56.15 56.50 56.84 0.69

Explanation of abbreviations: FSR: Free Spectral Range LD: Linear dispersion at FSR centre CD: Cross dispersion distance for wavemin, wavecentr and wavemax ORSEP: Order separation

ORD  WAVEMIN WAVCENTR  WAVEMAX   FSR    FSR     LD    CDMIN  CDCEN  CDMAX ORSEP
        (A)      (A)      (A)     (A)    (mm)  (A/mm)   (mm)   (mm)   (mm)  (mm)

126 4505.17 4523.12 4541.07 35.9 19.3 1.861 56.84 57.19 57.53 0.68 125 4541.05 4559.29 4577.52 36.5 19.4 1.876 57.53 57.87 58.21 0.68 124 4577.50 4596.03 4614.57 37.1 19.6 1.891 58.21 58.54 58.88 0.67 123 4614.54 4633.38 4652.21 37.7 19.8 1.907 58.88 59.21 59.55 0.67 122 4652.19 4671.33 4690.48 38.3 19.9 1.922 59.55 59.88 60.21 0.66 121 4690.46 4709.92 4729.38 38.9 20.1 1.938 60.21 60.54 60.86 0.66 120 4729.35 4749.14 4768.93 39.6 20.2 1.954 60.86 61.19 61.51 0.65 119 4768.90 4789.03 4809.15 40.2 20.4 1.971 61.51 61.84 62.16 0.65 118 4809.12 4829.58 4850.05 40.9 20.6 1.988 62.16 62.48 62.80 0.64 117 4850.02 4870.84 4891.65 41.6 20.8 2.005 62.80 63.12 63.44 0.64 116 4891.62 4912.80 4933.97 42.4 20.9 2.022 63.43 63.75 64.06 0.63 115 4933.94 4955.49 4977.03 43.1 21.1 2.039 64.06 64.38 64.69 0.62 114 4977.00 4998.93 5020.85 43.9 21.3 2.057 64.69 65.00 65.31 0.62 113 5020.82 5043.13 5065.45 44.6 21.5 2.075 65.31 65.62 65.92 0.61 112 5065.42 5088.13 5110.85 45.4 21.7 2.094 65.92 66.23 66.53 0.61 111 5110.81 5133.94 5157.06 46.3 21.9 2.113 66.53 66.84 67.14 0.60 110 5157.03 5180.57 5204.12 47.1 22.1 2.132 67.14 67.44 67.74 0.60 109 5204.09 5228.07 5252.05 48.0 22.3 2.152 67.74 68.04 68.33 0.60 108 5252.01 5276.44 5300.87 48.9 22.5 2.171 68.33 68.63 68.92 0.59 107 5300.83 5325.71 5350.60 49.8 22.7 2.192 68.92 69.22 69.51 0.59 106 5350.56 5375.92 5401.28 50.7 22.9 2.212 69.51 69.80 70.09 0.58 105 5401.24 5427.08 5452.92 51.7 23.1 2.233 70.09 70.38 70.66 0.58 104 5452.88 5479.22 5505.57 52.7 23.4 2.255 70.66 70.95 71.24 0.57 103 5505.52 5532.38 5559.23 53.7 23.6 2.277 71.24 71.52 71.80 0.57 102 5559.19 5586.58 5613.96 54.8 23.8 2.299 71.80 72.09 72.37 0.56 101 5613.92 5641.85 5669.78 55.9 24.1 2.322 72.37 72.65 72.93 0.56 100 5669.73 5698.22 5726.71 57.0 24.3 2.345 72.92 73.20 73.48 0.56 99 5726.66 5755.73 5784.80 58.1 24.5 2.369 73.48 73.76 74.03 0.55 98 5784.75 5814.42 5844.08 59.3 24.8 2.393 74.03 74.31 74.58 0.55 97 5844.03 5874.31 5904.59 60.6 25.1 2.418 74.58 74.85 75.12 0.54 96 5904.54 5935.46 5966.37 61.8 25.3 2.443 75.12 75.39 75.66 0.54 95 5966.32 5997.89 6029.46 63.1 25.6 2.468 75.66 75.93 76.20 0.54 94 6029.40 6061.64 6093.89 64.5 25.9 2.495 76.20 76.46 76.73 0.53 93 6093.83 6126.77 6159.71 65.9 26.1 2.521 76.73 76.99 77.26 0.53 92 6159.66 6193.32 6226.98 67.3 26.4 2.549 77.26 77.52 77.78 0.53 91 6226.92 6261.32 6295.72 68.8 26.7 2.577 77.78 78.04 78.30 0.52 90 6295.67 6330.84 6366.01 70.3 27.0 2.605 78.30 78.56 78.82 0.52 89 6365.95 6401.91 6437.88 71.9 27.3 2.635 78.82 79.08 79.34 0.52

Explanation of abbreviations: FSR: Free Spectral Range LD: Linear dispersion at FSR centre CD: Cross dispersion distance for wavemin, wavecentr and wavemax ORSEP: Order separation

ORD  WAVEMIN WAVCENTR  WAVEMAX   FSR    FSR     LD    CDMIN  CDCEN  CDMAX ORSEP
        (A)      (A)      (A)     (A)    (mm)  (A/mm)   (mm)   (mm)   (mm)  (mm)

88 6437.82 6474.61 6511.39 73.6 27.6 2.665 79.43 79.60 79.85 0.51 87 6511.33 6548.97 6586.61 75.3 27.9 2.695 79.85 80.11 80.36 0.51 86 6586.54 6625.06 6663.58 77.0 28.3 2.726 80.36 80.62 80.87 0.51 85 6663.51 6702.94 6742.37 78.9 28.6 2.759 80.87 81.12 81.37 0.51 84 6742.31 6782.68 6823.05 80.7 28.9 2.791 81.37 81.63 81.88 0.50 83 6822.98 6864.34 6905.69 82.7 29.3 2.825 81.88 82.13 82.38 0.50 82 6905.62 6947.98 6990.35 84.7 29.6 2.859 82.38 82.63 82.87 0.50 81 6990.28 7033.69 7077.11 86.8 30.0 2.895 82.87 83.12 83.37 0.50 80 7077.04 7121.55 7166.06 89.0 30.4 2.931 83.37 83.62 83.87 0.50 79 7165.98 7211.63 7257.27 91.3 30.8 2.968 83.87 84.12 84.36 0.49 78 7257.19 7304.01 7350.83 93.6 31.2 3.006 84.36 84.61 84.85 0.49 77 7350.75 7398.80 7446.84 96.1 31.6 3.045 84.85 85.10 85.35 0.49 76 7446.76 7496.08 7545.39 98.6 32.0 3.085 85.35 85.59 85.84 0.49 75 7545.31 7595.95 7646.59 101.3 32.4 3.126 85.84 86.09 86.33 0.49 74 7646.50 7698.52 7750.54 104.0 32.8 3.168 86.33 86.58 86.82 0.49 73 7750.45 7803.90 7857.35 106.9 33.3 3.212 86.82 87.07 87.31 0.49 72 7857.26 7912.21 7967.15 109.9 33.7 3.256 87.31 87.56 87.80 0.49 71 7967.06 8023.56 8080.07 113.0 34.2 3.302 87.80 88.05 88.30 0.49 70 8079.97 8138.10 8196.23 116.3 34.7 3.349 88.30 88.55 88.79 0.49 69 8196.13 8255.95 8315.78 119.7 35.2 3.398 88.79 89.04 89.29 0.50 68 8315.68 8377.27 8438.87 123.2 35.7 3.448 89.29 89.54 89.79 0.50 67 8438.77 8502.21 8565.66 126.9 36.3 3.499 89.79 90.04 90.29 0.50 66 8565.55 8630.94 8696.33 130.8 36.8 3.552 90.29 90.54 90.79 0.50 65 8696.21 8763.62 8831.04 134.8 37.4 3.607 90.79 91.04 91.30 0.51 64 8830.92 8900.45 8969.99 139.1 38.0 3.663 91.30 91.55 91.81 0.51 63 8969.86 9041.62 9113.38 143.5 38.6 3.721 91.81 92.07 92.32 0.52 62 9113.25 9187.34 9261.43 148.2 39.2 3.781 92.32 92.59 92.85 0.52 61 9261.30 9337.84 9414.38 153.1 39.8 3.843 92.85 93.11 93.37 0.53 60 9414.24 9493.35 9572.46 158.2 40.5 3.907 93.37 93.64 93.91 0.54 59 9572.31 9654.13 9735.94 163.6 41.2 3.973 93.91 94.18 94.45 0.54 58 9735.79 9820.45 9905.11 169.3 41.9 4.042 94.45 94.73 95.00 0.55 57 9904.94 9992.60 10080.25 175.3 42.6 4.112 95.00 95.28 95.56 0.56 56 10080.08 10170.89 10261.71 181.6 43.4 4.186 95.56 95.85 96.13 0.57 55 10261.53 10355.67 10449.81 188.3 44.2 4.262 96.13 96.43 96.72 0.58 54 10449.62 10547.28 10644.94 195.3 45.0 4.341 96.72 97.02 97.32 0.60 53 10644.74 10746.12 10847.50 202.8 45.8 4.422 97.31 97.62 97.93 0.61 52 10847.29 10952.60 11057.91 210.6 46.7 4.507 97.93 98.24 98.56 0.63

Explanation of abbreviations: FSR: Free Spectral Range LD: Linear dispersion at FSR centre CD: Cross dispersion distance for wavemin, wavecentr and wavemax ORSEP: Order separation

ORD  WAVEMIN WAVCENTR  WAVEMAX   FSR    FSR     LD    CDMIN  CDCEN  CDMAX ORSEP
        (A)      (A)      (A)     (A)    (mm)  (A/mm)   (mm)   (mm)   (mm)  (mm)

49 4566.96 4614.04 4661.12 94.2 47.8 1.969 58.96 59.82 60.65 1.69 48 4661.04 4710.11 4759.17 98.1 48.8 2.010 60.65 61.49 62.30 1.66 47 4759.09 4810.26 4861.43 102.3 49.9 2.053 62.30 63.13 63.92 1.62 46 4861.34 4914.76 4968.18 106.8 50.9 2.097 63.92 64.73 65.51 1.59 45 4968.08 5023.90 5079.72 111.6 52.1 2.144 65.51 66.30 67.07 1.56 44 5079.61 5138.00 5196.38 116.8 53.3 2.192 67.06 67.84 68.59 1.52 43 5196.26 5257.40 5318.53 122.3 54.5 2.243 68.59 69.35 70.08 1.49 42 5318.40 5382.48 5446.56 128.2 55.8 2.297 70.08 70.82 71.54 1.46 41 5446.42 5513.66 5580.90 134.5 57.2 2.353 71.54 72.27 72.98 1.44 40 5580.75 5651.39 5722.03 141.3 58.6 2.411 72.98 73.69 74.38 1.41 39 5721.88 5796.19 5870.50 148.6 60.1 2.473 74.38 75.09 75.77 1.38 38 5870.33 5948.60 6026.87 156.5 61.7 2.538 75.76 76.46 77.12 1.36 37 6026.68 6109.24 6191.80 165.1 63.3 2.607 77.12 77.80 78.46 1.34 36 6191.60 6278.81 6366.02 174.4 65.1 2.679 78.46 79.12 79.77 1.31 35 6365.81 6458.06 6550.32 184.5 67.0 2.756 79.77 80.43 81.06 1.30 34 6550.10 6647.86 6745.62 195.5 68.9 2.837 81.06 81.71 82.34 1.28 33 6745.38 6849.15 6952.93 207.6 71.0 2.923 82.34 82.98 83.60 1.26 32 6952.66 7063.02 7173.38 220.7 73.2 3.014 83.60 84.24 84.86 1.25 31 7173.10 7290.69 7408.28 235.2 75.6 3.111 84.85 85.49 86.10 1.24 30 7407.97 7533.52 7659.08 251.1 78.1 3.215 86.10 86.73 87.34 1.24 29 7658.74 7793.10 7927.47 268.7 80.8 3.325 87.34 87.97 88.58 1.24 28 7927.09 8071.22 8215.35 288.3 83.7 3.444 88.58 89.21 89.82 1.25 27 8214.93 8369.93 8524.92 310.0 86.8 3.571 89.82 90.46 91.08 1.26 26 8524.45 8691.60 8858.75 334.3 90.1 3.709 91.07 91.72 92.35 1.28 25 8858.22 9039.00 9219.78 361.6 93.7 3.857 92.35 93.01 93.65 1.30 24 9219.18 9415.33 9611.48 392.3 97.6 4.018 93.65 94.33 94.99 1.34 23 9610.80 9824.37 10037.94 427.1 101.9 4.192 94.99 95.69 96.38 1.39 22 10037.15 10270.57 10503.99 466.8 106.5 4.382 96.37 97.11 97.83 1.46 21 10503.06 10759.23 11015.40 512.3 111.6 4.591 97.83 98.61 99.38 1.55

Explanation of abbreviations:

FSR: Free Spectral Range LD: Linear dispersion at FSR centre CD: Cross dispersion distance for wavemin, wavecentr and wavemax ORSEP: Order separation
