Optical
Database
INGRID optics
Authors:
M.F.Blanken
Revision 0.2 21/08/01
Revision History
0.1 First draft
0.2 Improvement with INGRID website
Filename: \\Ormnt1\ Group_Area\Optics\Master__Web_Documents\INGRID.doc
Owner: M.F.Blanken
Content:
Optical specifications......................................................................................................................... 2
Mechanical specifications................................................................................................................... 3
Ingrid Filters...................................................................................................................................... 3
Position in telescope.......................................................................................................................... 4
Aligning............................................................................................................................................. 4
Layout.............................................................................................................................................. 4
Main INGRID
website
http://www.ing.iac.es/Astronomy/instruments/ingrid/index.html
Optical
specifications
|
Shape |
Radii (mm) |
Axial Thickness
(mm) |
Glass |
Working Diameter (mm) |
Asphericity |
|
|
Field Lens F11 |
Meniscus |
161 / 3393 |
14 |
CaF2 |
92 |
|
|
Aspherical Collimator F11 |
Aspheric |
88 / 210 |
12 |
BaF2 |
60 |
-.84 / 0 |
|
Field Lens
NAOMI |
Meniscus |
47.2 / 23.8 |
5.0 |
RGB_9754 |
32 |
|
|
Collimator NAOMI |
Biconvex |
33.9 / -36.7 |
13.4 |
BaF2 |
32 |
|
|
Window |
Plane |
|
10 |
CaF2 |
30 |
|
|
Lens 1 |
Biconvex |
47 / -41 |
14.2 |
BaF2 |
43 |
|
|
Lens 2 |
Meniscus |
-38 / 412 |
8.2 |
RGB_9754 |
41 |
|
|
Lens 3 |
Biconvex |
50 / 2298 |
10 |
MgO |
45 |
|
|
Lens 4 |
Biconcave |
-37 / -64 |
2.5 |
RGB_9754 |
34 |
|
|
PI lens 1 |
Biconvex |
84.6 / -127.5 |
6.6 |
ZNS_Broad |
17.2 |
|
|
PI lens 2 |
Biconcave |
-11.8 / 22.3 |
4.7 |
Silica |
14 |
|
|
PI lens 3 |
Meniscus |
-991.5 / -27.8 |
5.9 |
ZNS_Broad |
20 |
|
Mechanical
specifications
|
Elements |
Shape |
Total Diameter (mm) |
Axial thickness
(mm) |
Edge thickness (mm) |
Material |
|
Field Lens F11 |
Meniscus |
92 |
14 |
7.5 |
CaF2 |
|
Aspherical Collimator F11 |
Aspheric |
60 |
12 |
9.1 |
BaF2 |
|
Field Lens NAOMI |
Meniscus |
32 |
5.0 |
6.5 |
RGB_9754 |
|
Collimator NAOMI |
Biconvex |
32 |
13.4 |
5.8 |
BaF2 |
|
Window |
Plane |
60 |
10 |
10 |
CaF2 |
|
Lens 1 |
Biconvex |
43 |
14.2 |
3 |
BaF2 |
|
Lens 2 |
Meniscus |
43 |
8.2 |
13.5 |
RGB_9754 |
|
Lens 3 |
Biconvex |
45.2 |
10 |
4.5 |
MgO |
|
Lens 4 |
Biconcave |
34 |
2.5 |
6.5 |
RGB_9754 |
|
PI lens 1 |
Biconvex |
|
6.6 |
|
ZNS_Broad |
|
PI lens 2 |
Biconcave |
|
4.7 |
|
Silica |
|
PI lens 3 |
Meniscus |
|
5.9 |
|
ZNS_Broad |
Ingrid
Filters
Look for filter information on the INGRID page:
http://www.ing.iac.es/Astronomy/instruments/ingrid/ingrid_filters.html
Position in telescope
INGRID can be used on two positions on the WHT telescope
- Cassegrain focus F11 beam
- Nasmyth focus (behind NAOMI) F16.5 beam
Aligning
Documents of the aligning procedures:
http://www.ing.iac.es/~eng/mechanical/Group_stuff/instruments/INGRID/INGRID_change_checklist02.PDF
Layout

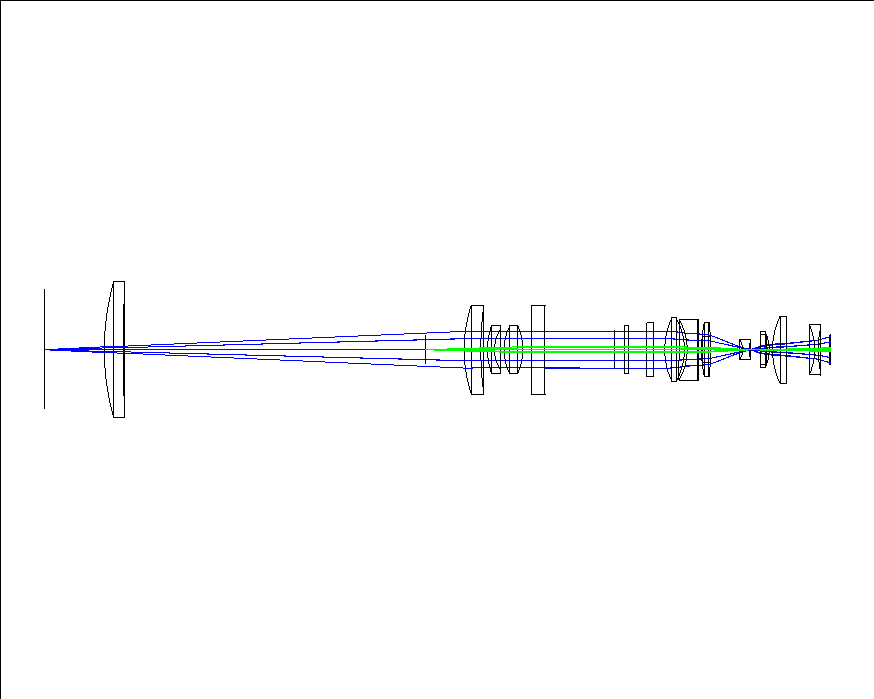

ZEMAX Layout of File: All_29dppupilimager.zmx
Blue = Cass F11 layout
Green = Naomi F16.5 layout
