Optical SDSU Front Panel Wiring
The information here relates to the Temperature, CCD ID and Shutter Connectors. Information on the CCD connectors can be located separately under camera specific information pages.
CCD ID Connector (PDF)
Temperature Connector (PDF)

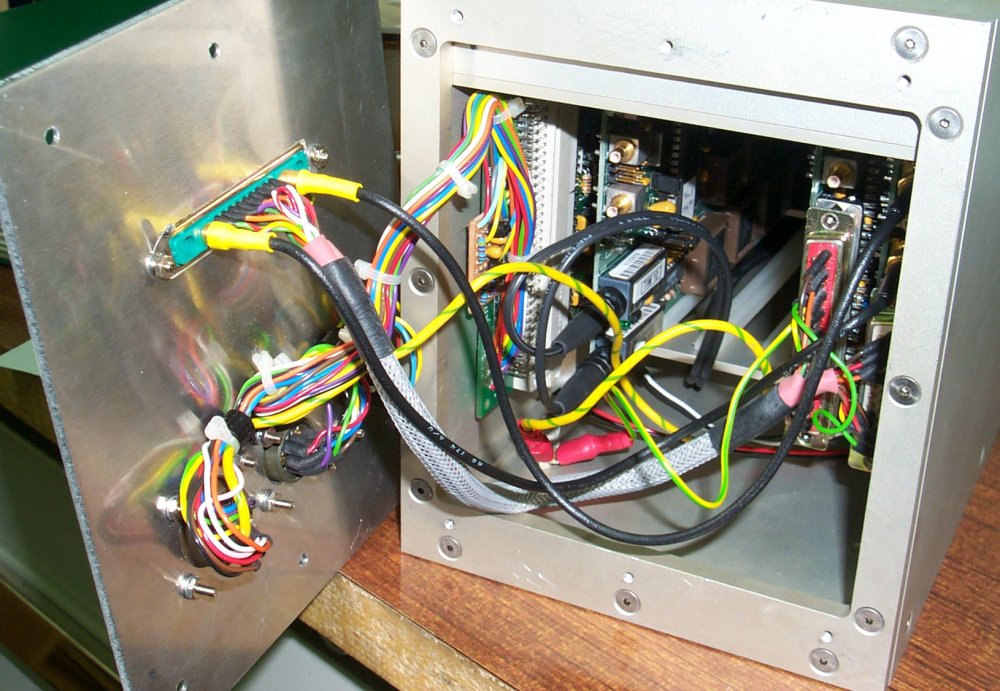

Photograph of the front panel detached

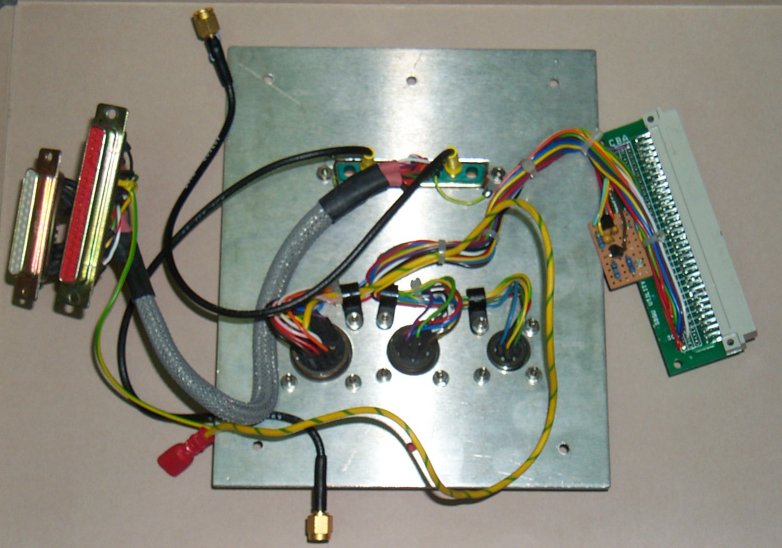

Photograph of the front panel connected
