Item
|
Contact
|
Location
|
Comments
|
|
Vacuum
|
| Turbo pump |
awr/rmr
|
Detector lab./Observing Floor
|
These are identical to and will need to be
removed from the lab. pump.
|
Diaphram pump
|
awr/rmr
|
Detector lab./Observing Floor
|
These are identical to and will need to be
removed from the lab. pump.
|
Vacuum sensors PKR250
|
awr/rmr
|
Detector lab.
|
Apart from spares in lab. the cryostat has
a spare permanently fitted.
|

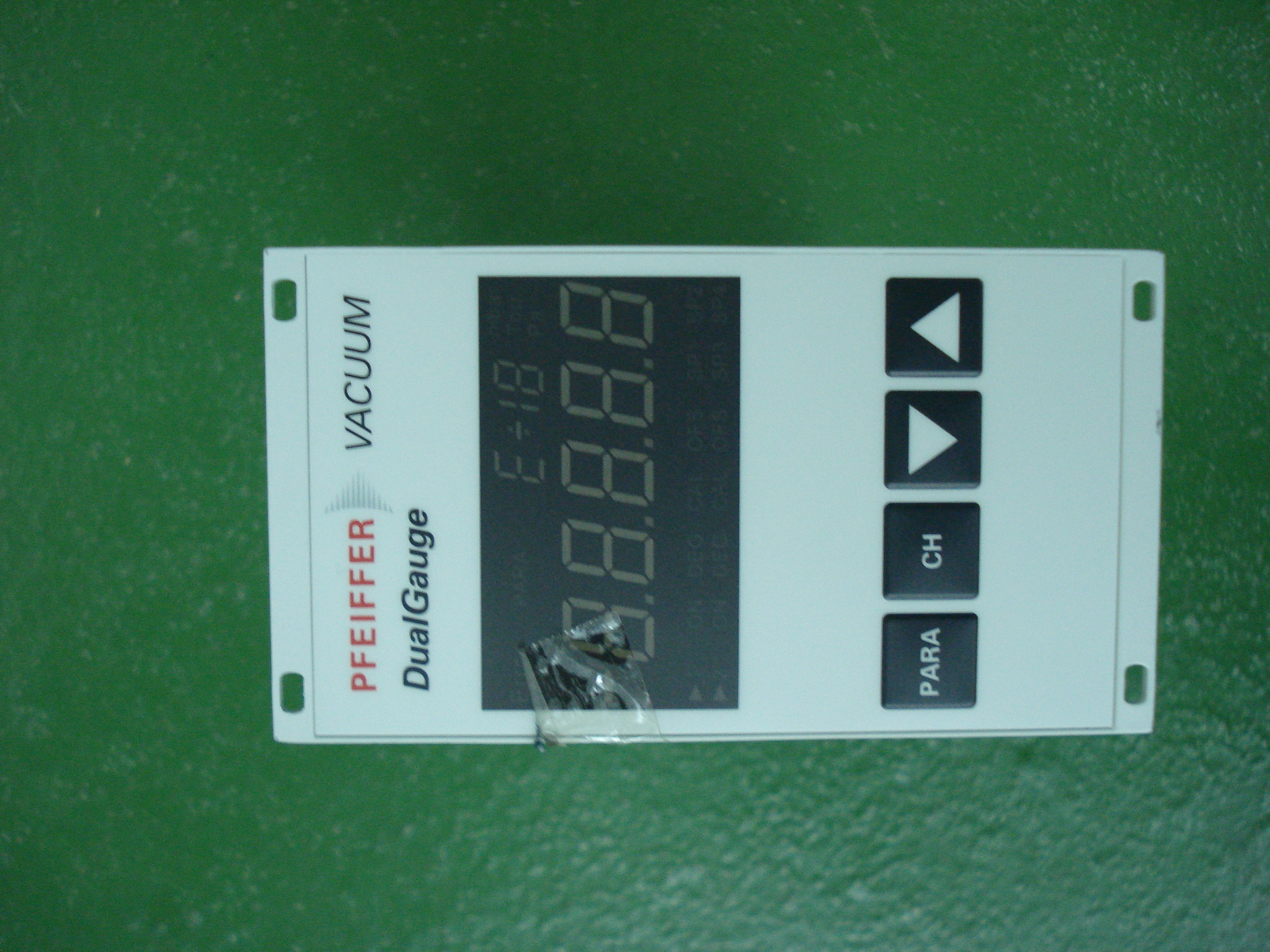

Vacuum gauge TG252
|
awr/rmr
|
Liris room/Detector Lab.
|
|

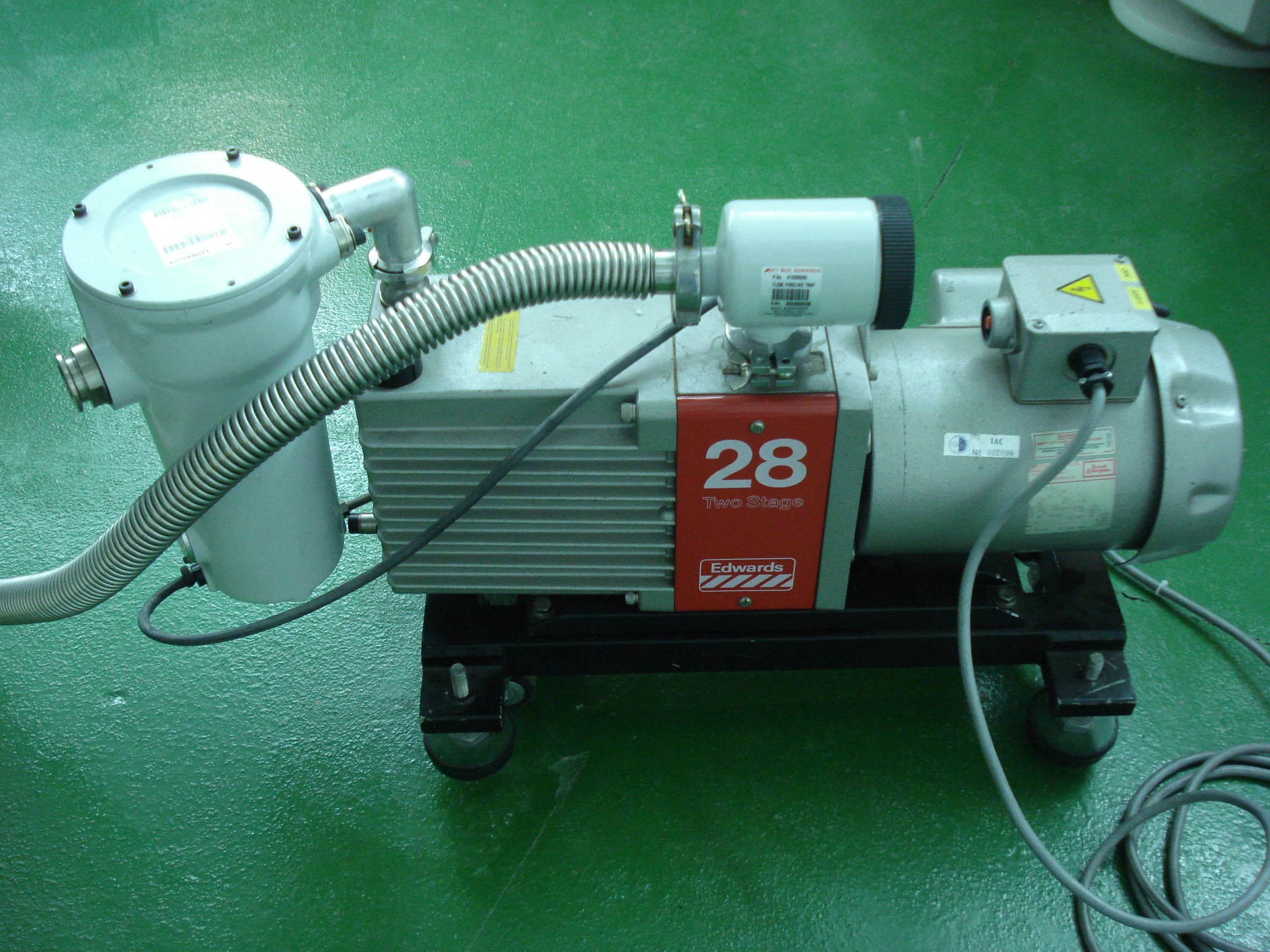

Edwards Schroll roughing
pump
|
awr/rmr
|
Liris room/Observing Floor
|
The Edwards rotary pump can be used in an
emergency. NB it cannot be hung on the instrument it must stay on the floor.
|

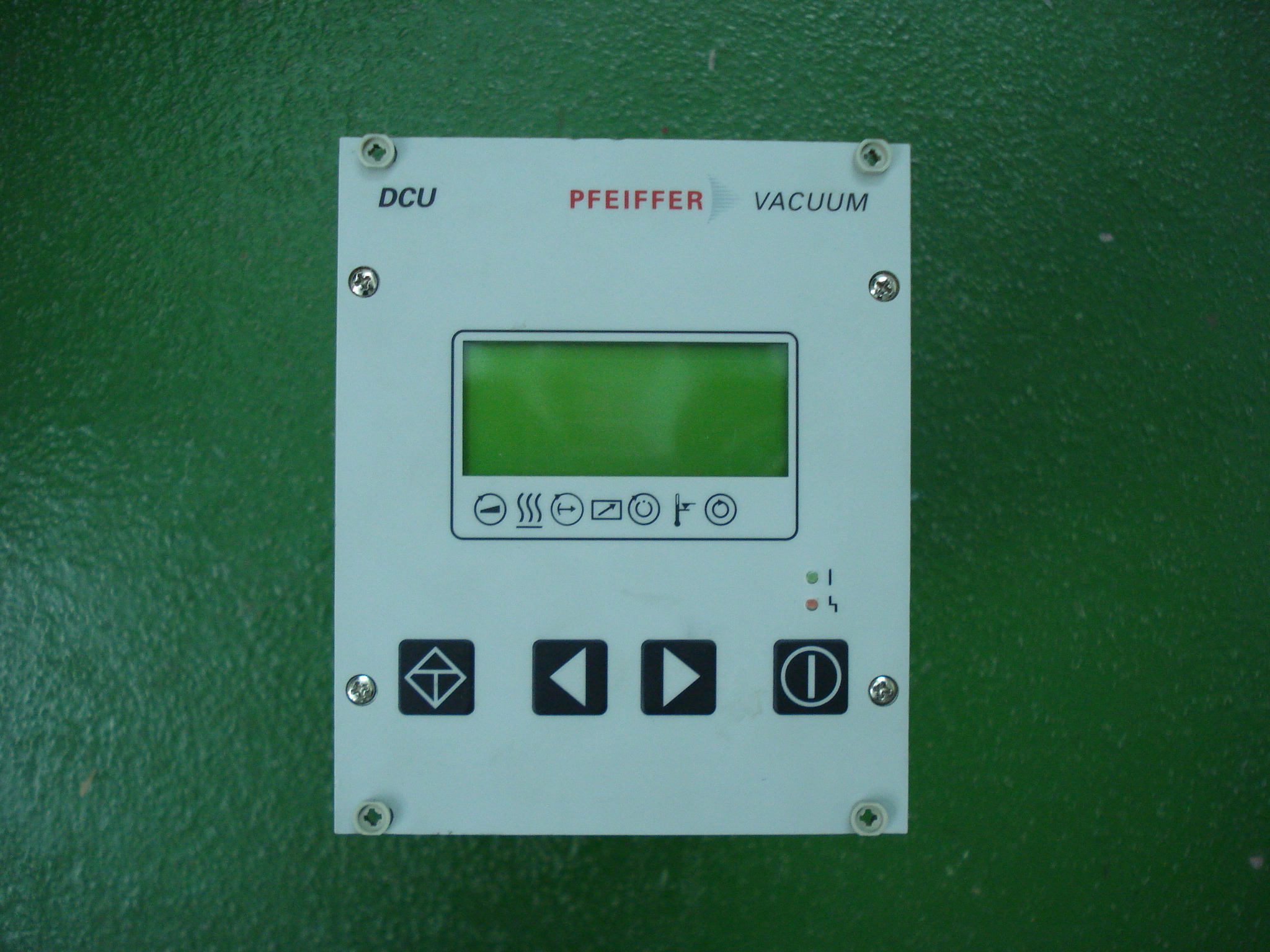

DCU Turbo
pump controller
|
awr/rmr
|
Liris room
|
Check the fuse (there are spares on the inside
of the door) before changing the unit !
|
|
Detector
|
|
|
|
IR Power Supply
|
awr/rmr
|
Detector lab.
|
Must have 32v enabled. Ingrid Supply will
not work.
|
SDSU controller
|
awr/rmr
|
Liris room
|
Only the controller labelled 'LIRIS' may be
used.
|
Array pre-amp
|
awr/rmr
|
Liris room
|
|

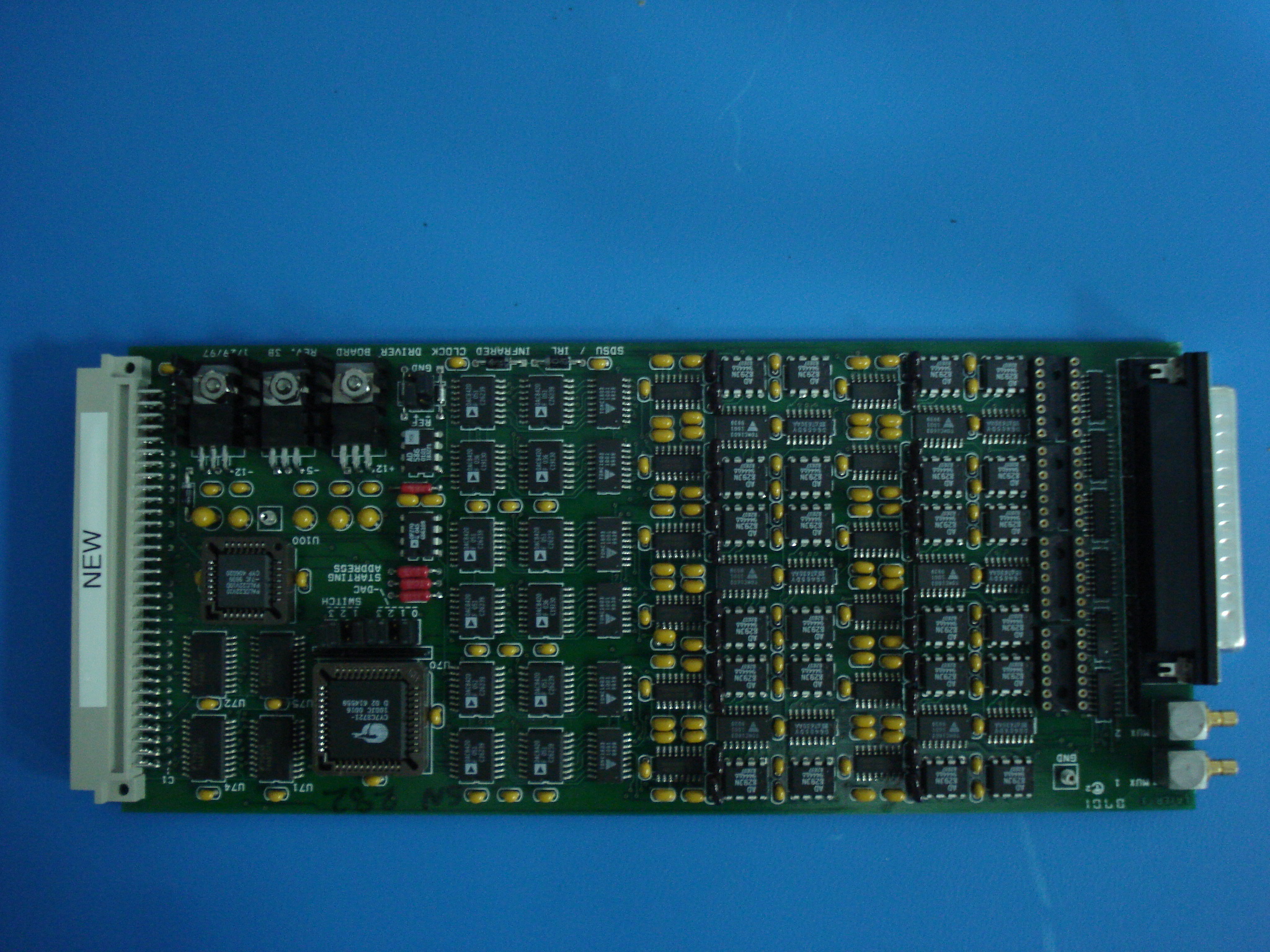

IR clock boards
|
awr/rmr
|
(1) In UK with RAB (2) detector lab.
|
|

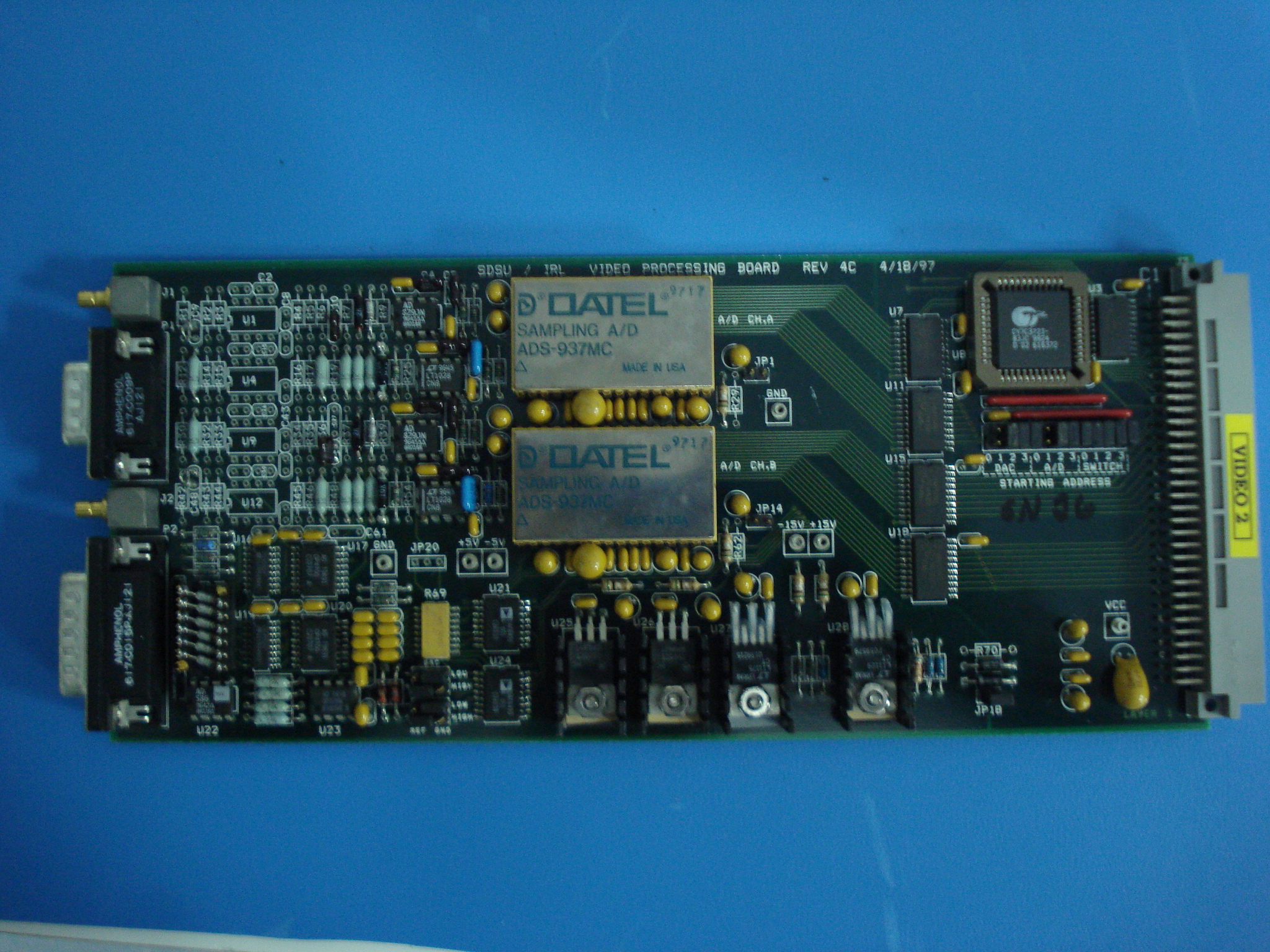

IR video boards
|
awr/rmr
|
(1) In controller 19 (2) detector lab.
|
|
|
Temperature
|
|
|
|

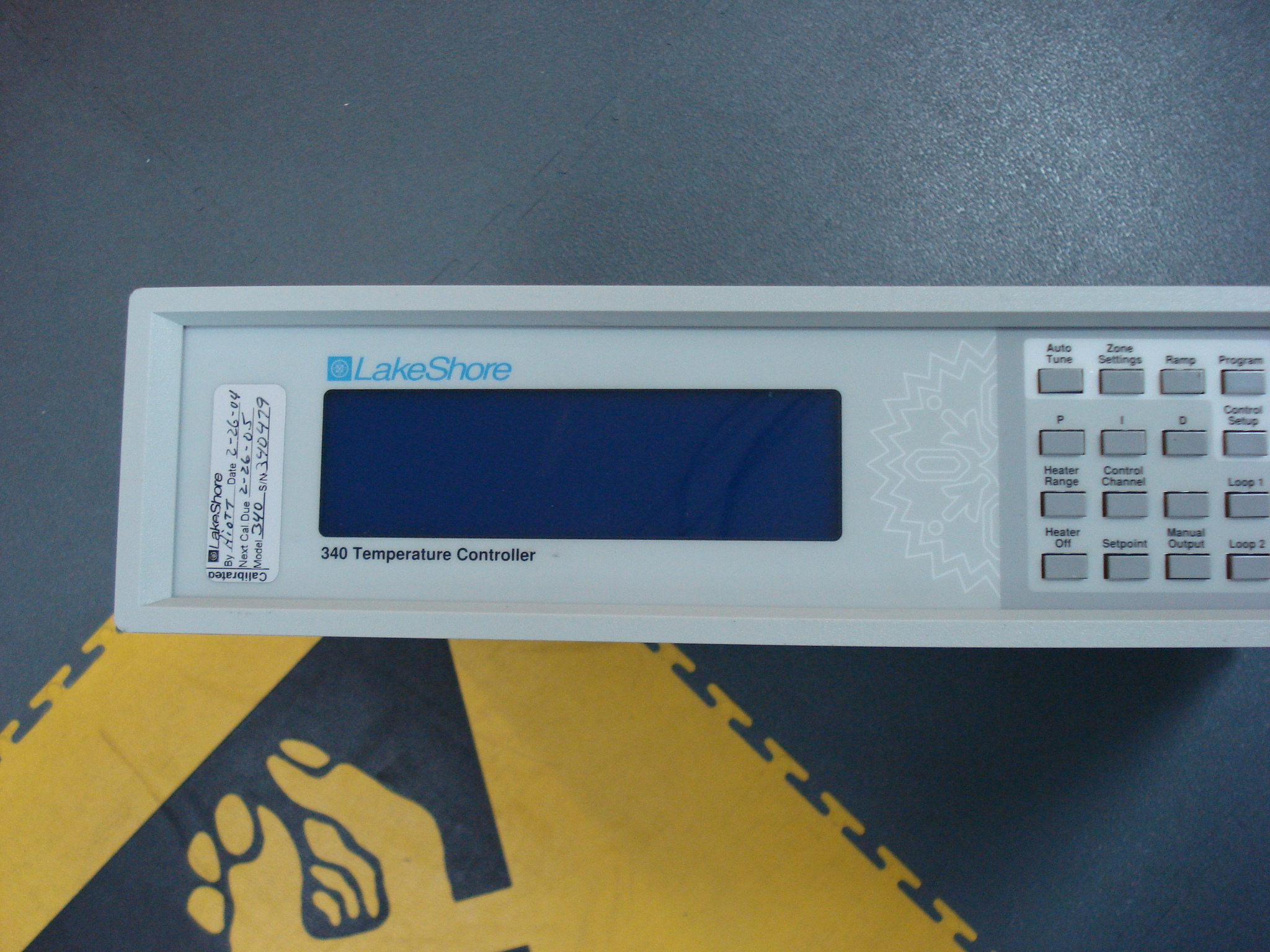

Lakeshore 340 temperature
controller
|
awr/rmr
|
Liris room
|
Complete plug in replacement
|

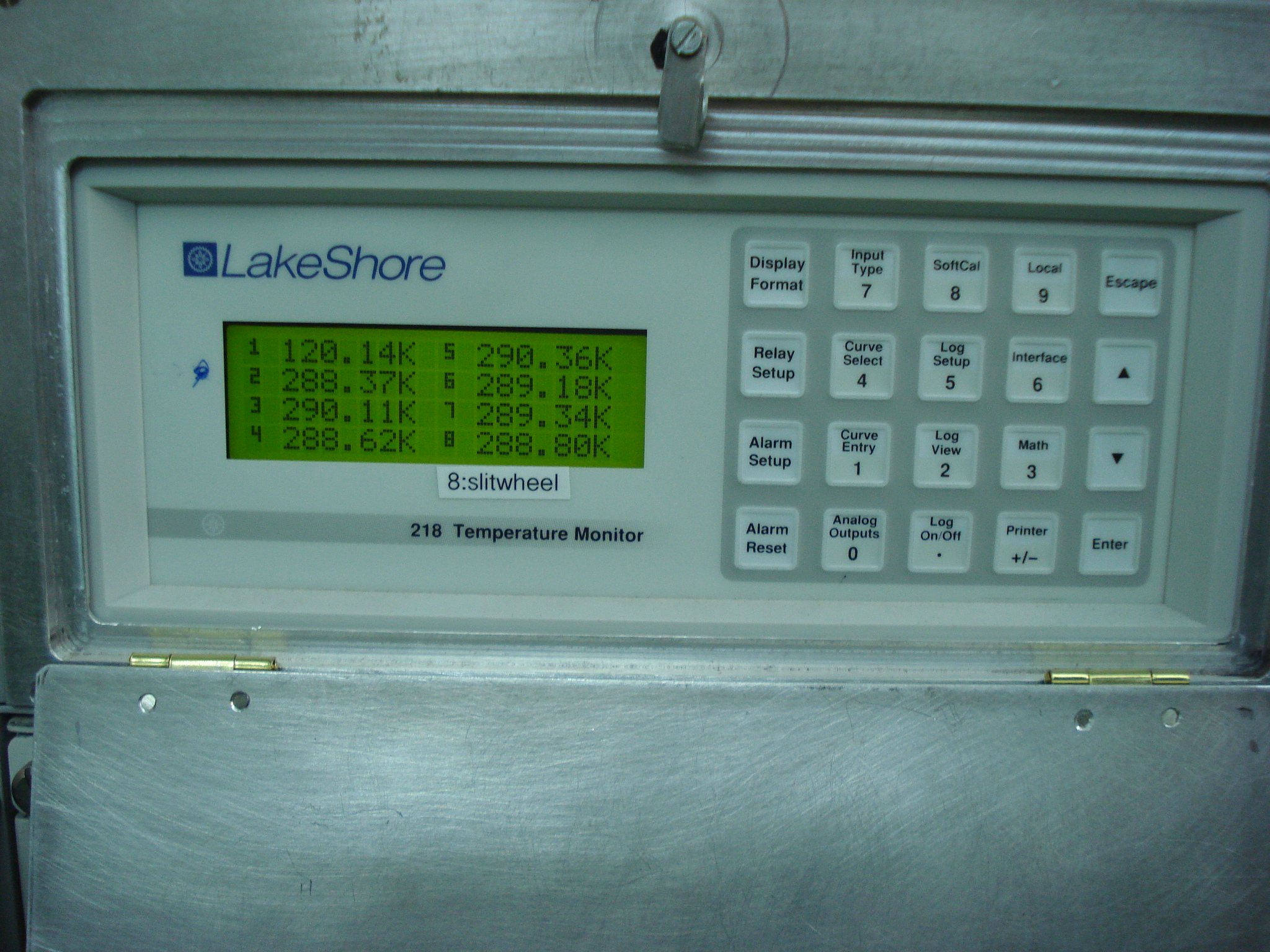

Lakeshore 218 temperature
monitor
|
awr/rmr
|
no spare
|
Not required for instrument to function, diagnostic
aid only.
|
Helium Compressor
|
awr/rmr
|
Oil pump room/Ghril room
|
Oil pump room unit used in parking and Ghril
unit used on telescope, they are interchangable.
|

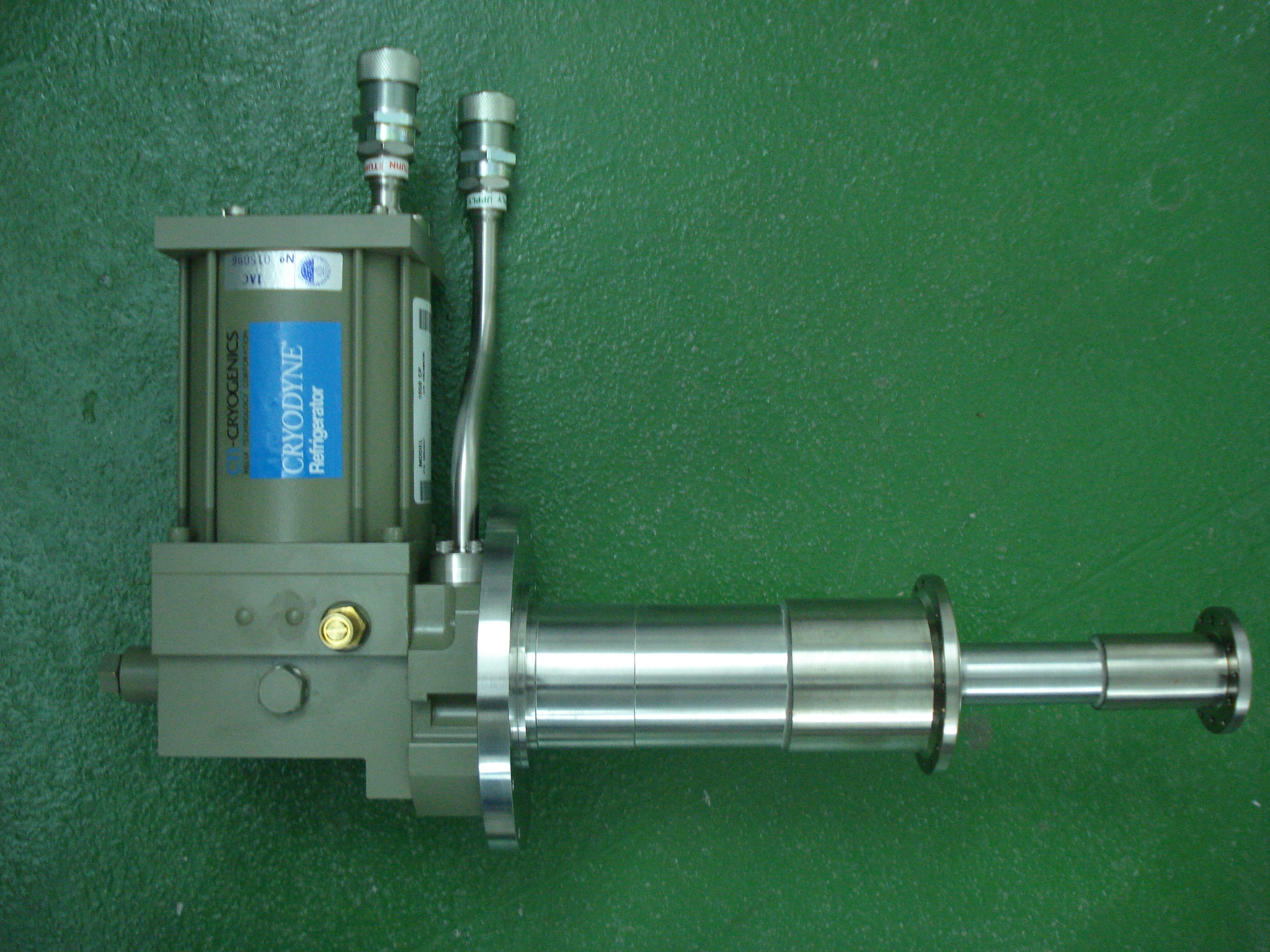

Closed cycle cooler head
|
awr/rmr
|
Liris room
|
This unit is badly worn but can be used in an emergency.
|
|
Mechanisms
|
|
|
|
VME rack
|
awr/rmr
|
Liris room
|
|
MVME 147-001 Processor card
|
awr/rmr
|
Liris room
|
Setup but check links anyway.
|
VME8 Stepper motor controller
card
|
awr/rmr
|
Liris room
|
Setup but check links anyway.
|
VMEX
|
awr
|
???
|
This card is not yet in use and does not have
a spare. (Will be used for polarimetry upgrade)
|
DIO XVME-240 Input/Output
|
awr/rjp
|
Test focal station
|
Spare shared with other instruments. Check
links setup before use.
|

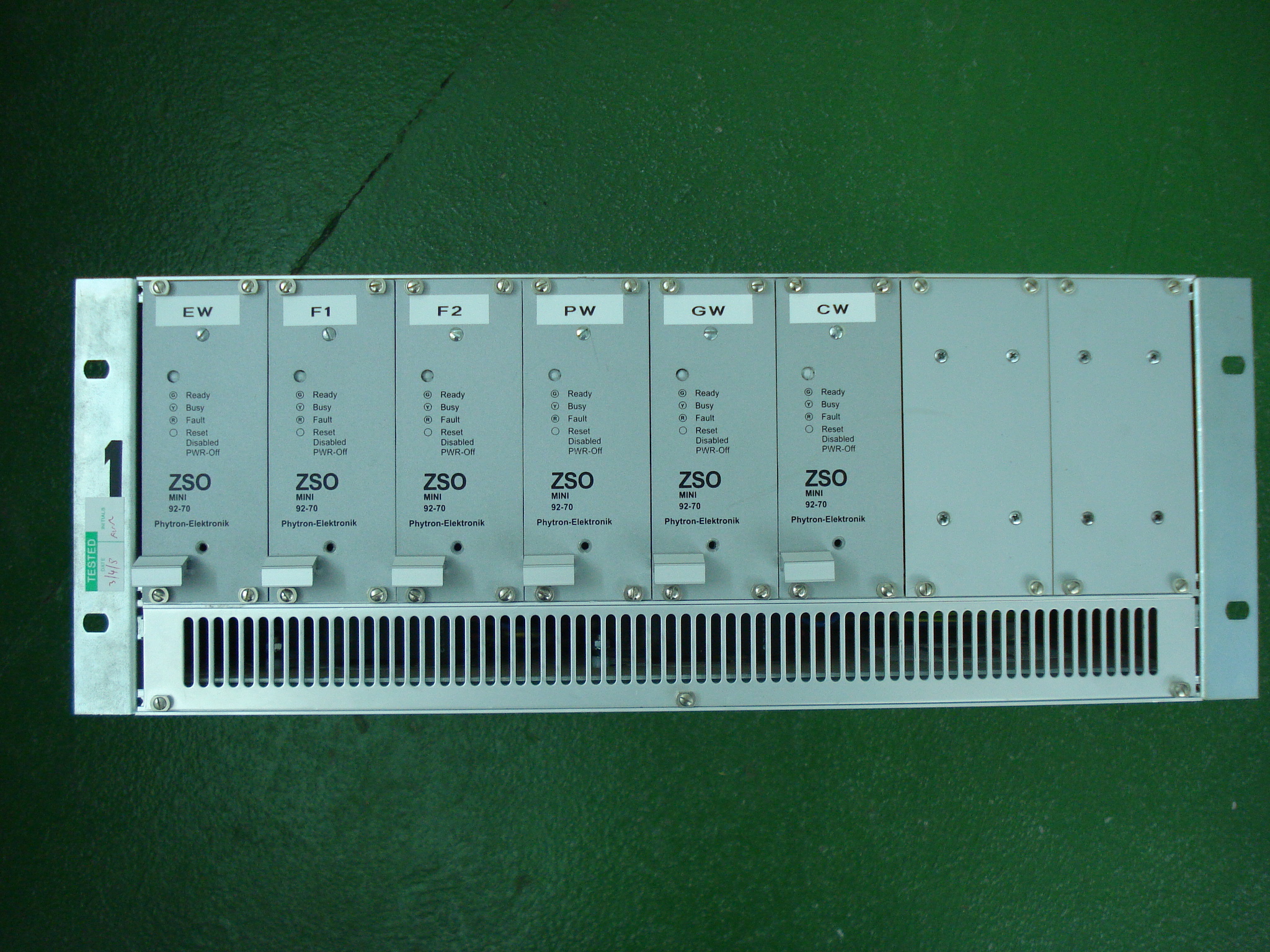

Phytron Motor Driver
Rack
|
awr/rmr
|
Liris room
|
Complete populated rack
|
|
Others
|

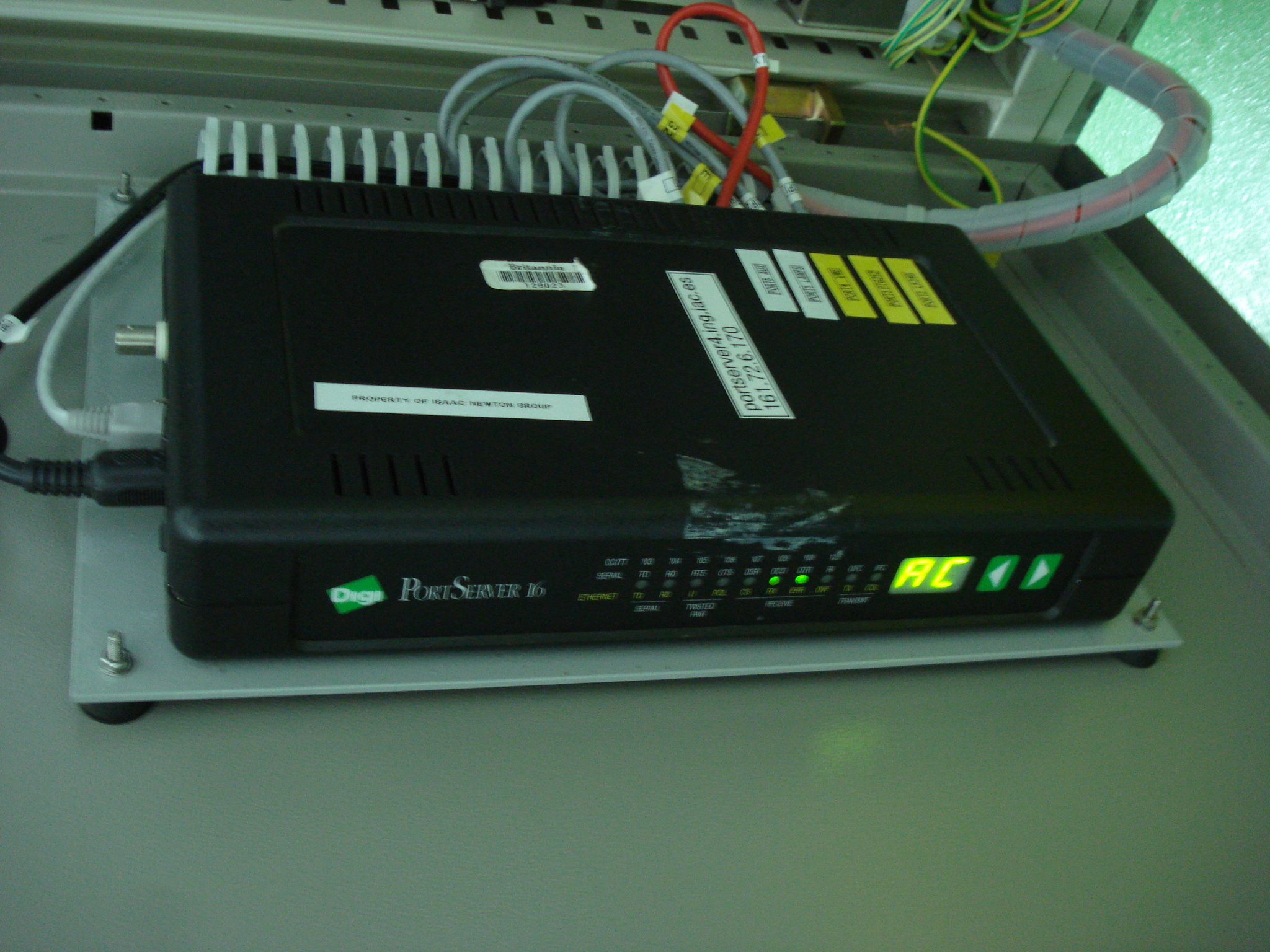

Portserver
|
cfg
|
Liris room
|
Configured spare.
|

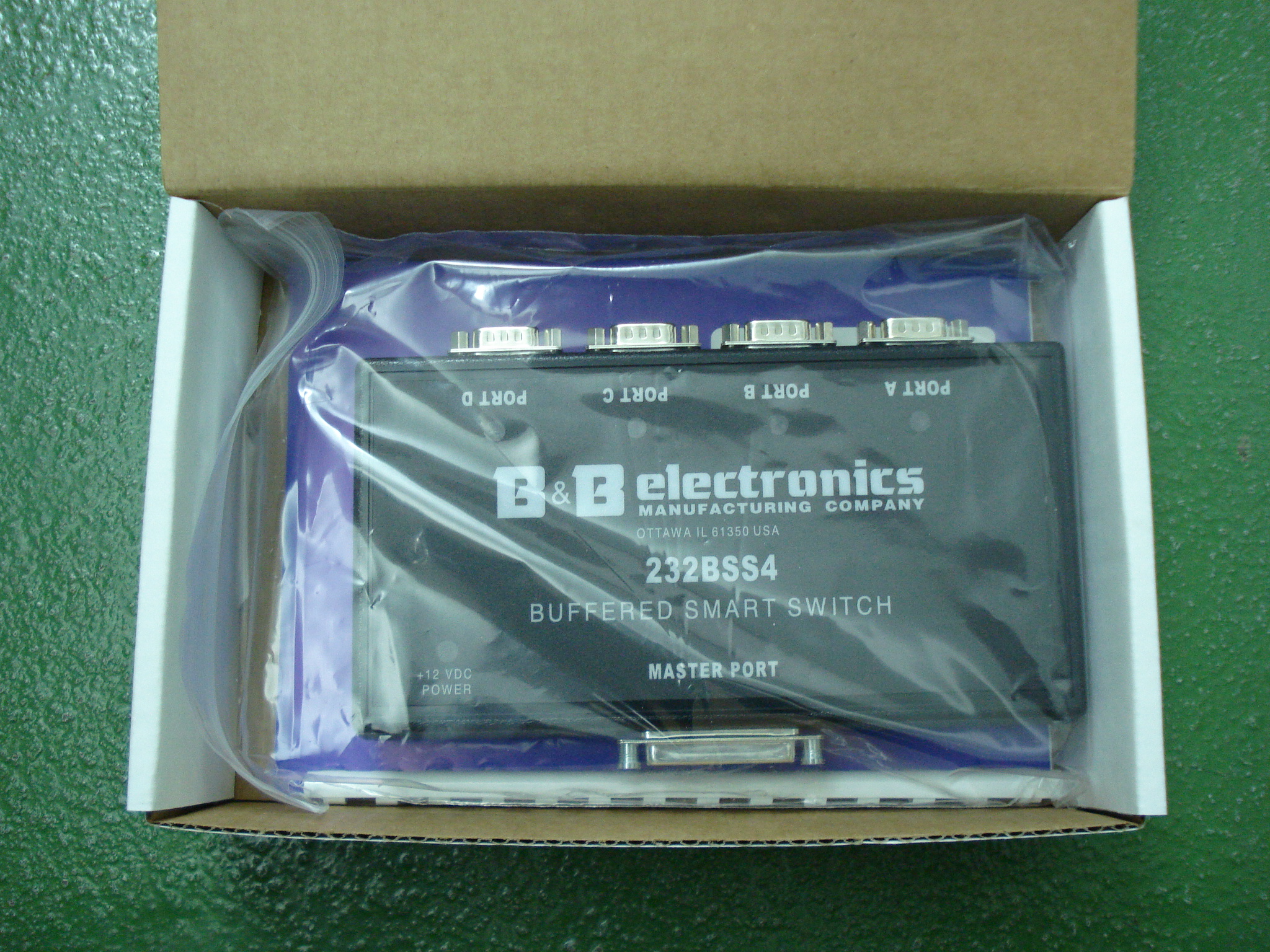

B&B RS232 multiplexor
|
awr
|
Liris room
|
|

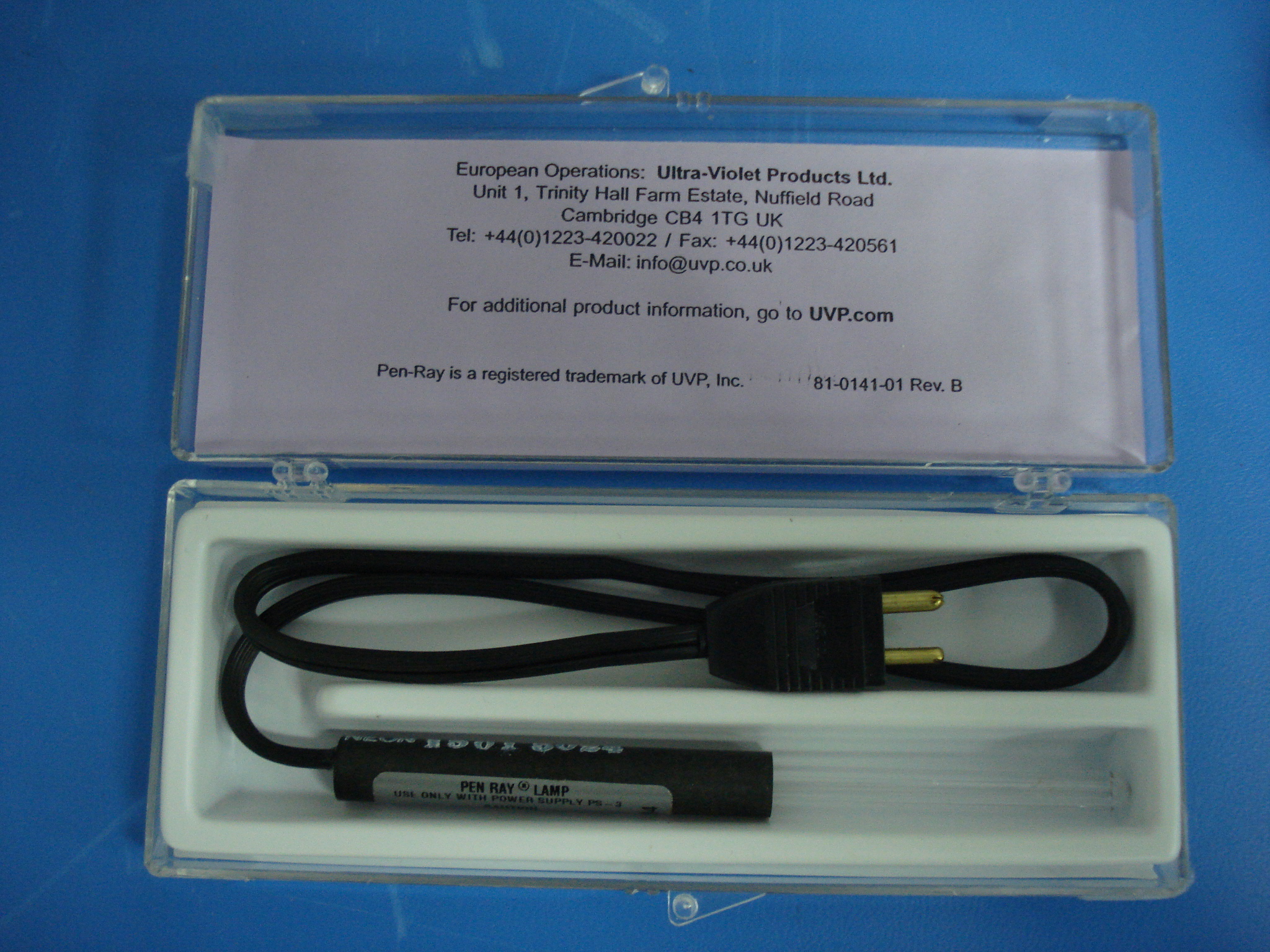

Comparison lamps
|
awr
|
Wyffos cupboard on dome floor
|
These are for Wyffos but can be used
|
Comparison lamp power
supply
|
awr
|
Wyffos cupboard on dome floor
|
These are for Wyffos but can be used
|
Comparison
lamps controller
|
awr
|
Liris room
|
A complete plug in spare is now available.
|
|
|
|
|
|
|
|
|
